KR36CAKXTG22NXXXXHJ On-On Auto Rocker Switch 24V White illuminated SPDT IP68
by APEM
SKU 490038
MPN: KR36CAKXTG22NXXXXHJ
Availability:
37 in stock
Original price
£17.47
-
Original price
£17.47
Original price
£17.47
£17.47
£17.47
-
£17.47
Current price
£17.47

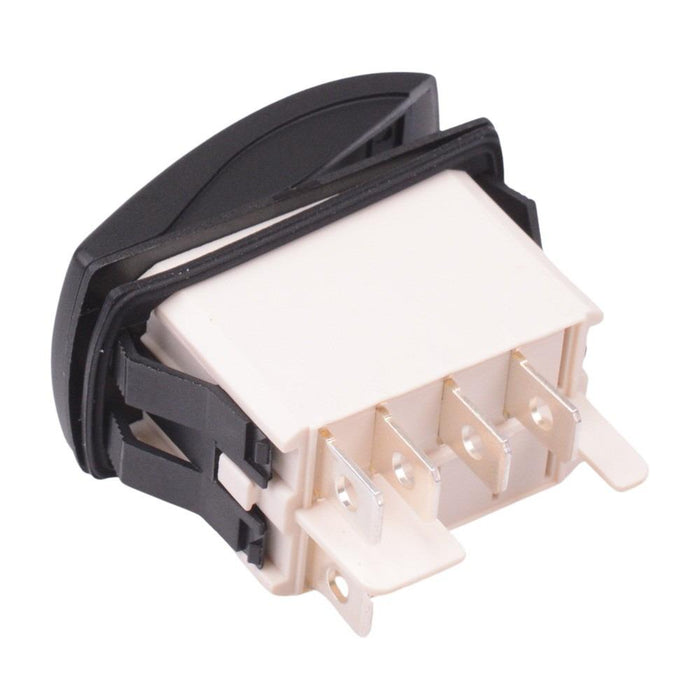

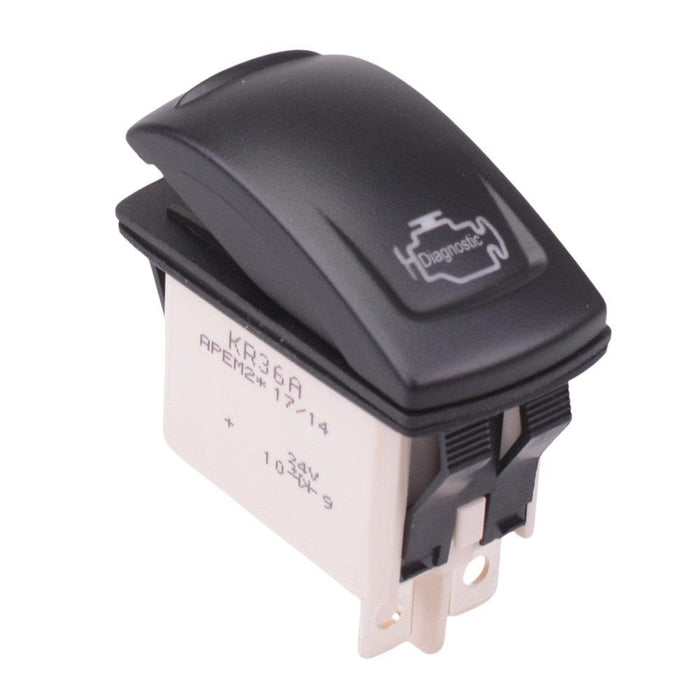

The KR36CAKXTG22NXXXXHJ is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-On SPDT contacts IP68 Rated Protection Solder / quick connect terminals 24V White illumination Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Colour | White |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
