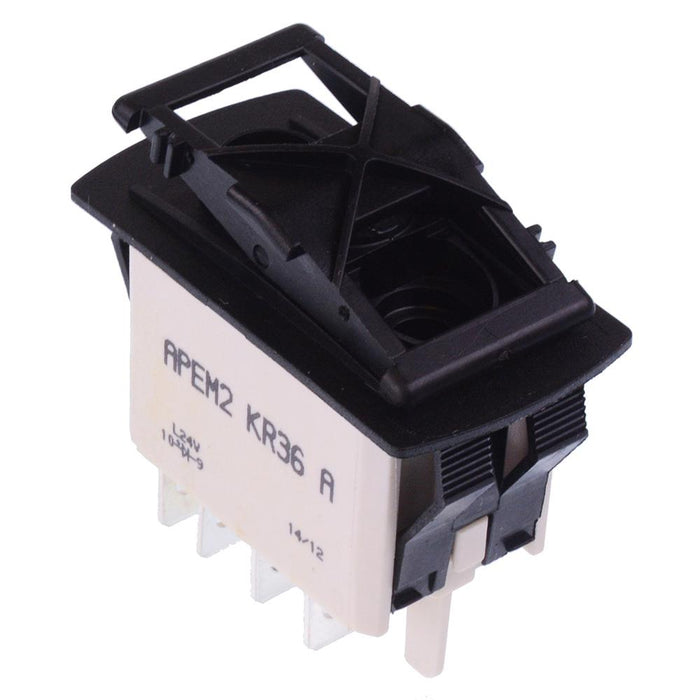

KR36CAXXLG APEM On-On Yellow LED 24V Automotive Rocker Switch SPDT

by APEM
SKU 487979

MPN: KR36CAXXLG

Availability:
22 in stock
Original price £14.79 - Original price £14.79
Original price
£14.79
£14.79 - £14.79
Current price £14.79
The KR36CAXXLG is an attractive rugged automotive rocker switch from the KR series by APEM, yellow 24V LED illumination. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

  • Yellow LED in 1 position
  • 24V LED voltage
  • On-On SPDT contacts
  • Solder / quick connect terminals
  • Silver contacts
  • Rating: 10A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Material Silver
    Contact Rating 10A 24VDC
    Current Rating 10A
    Electrical Life 10,000 Cycles
    Illuminated Yes
    Illumination Colour Yellow
    Illumination Voltage 24VDC
    Material PA66
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 36.8 x 21.08mm
    Panel Thickness 0.8-4.6mm
    Switch Operation On-On
    Terminal Type Quick Connect
    Voltage Rating 24VDC
