KR36JAXNNH APEM On-On Blue LED 12V Automotive Rocker Switch SPDT

by APEM
SKU 487312

MPN: KR36JAXNNH+KR0005

Availability:
120 in stock
Original price £18.25 - Original price £18.25
Original price
£18.25
£18.25 - £18.25
Current price £18.25

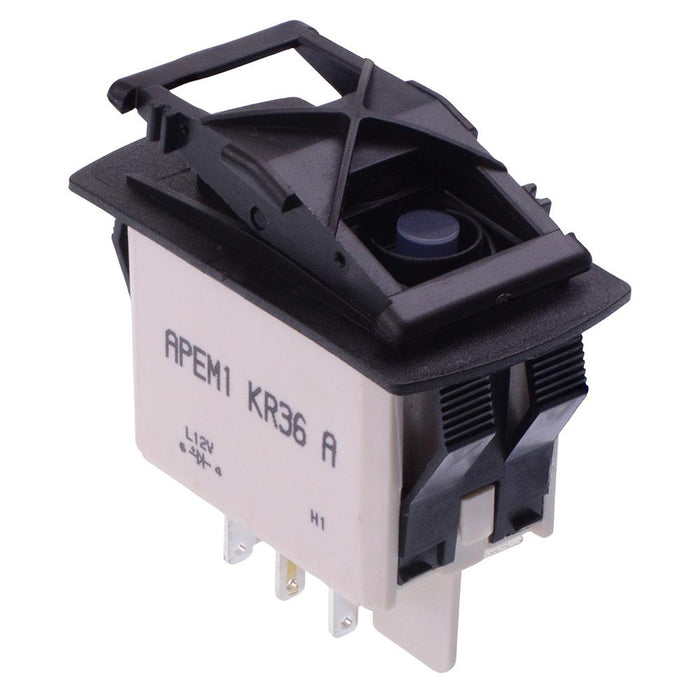

The KR36JAXNNH is an attractive rugged automotive rocker switch from the KR series by APEM, blue 12V LED illumination. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

  • Blue LED
  • 12V LED voltage
  • On-On SPDT contacts
  • 2.8mm quick connect terminals
  • Silver contacts
  • Rating: 5A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Material Silver
    Contact Rating 5A 24VDC
    Current Rating 5A
    Electrical Life 100,000 Cycles
    Illuminated Yes
    Illumination Colour Blue
    Illumination Voltage 12VDC
    Material PA66
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 36.8 x 21.08mm
    Panel Thickness 0.8-4.6mm
    Switch Operation On-On
    Terminal Type Quick Connect
    Voltage Rating 24VDC
