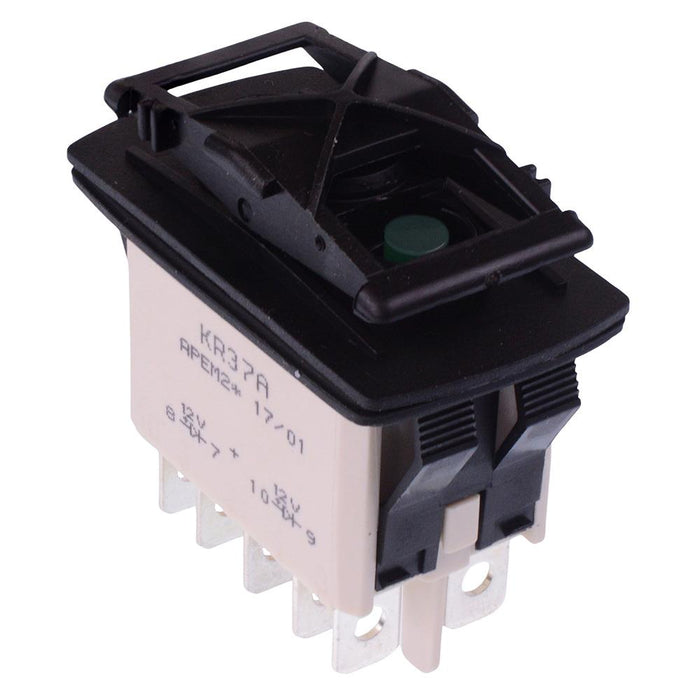

KR37CAKEEG APEM (On)-Off-(On) Momentary Green LED 12V Automotive Rocker Switch SPDT IP68 requires cap 488079
by APEM
SKU 487711
MPN: KR37CAKEEG
Availability:
28 in stock
Original price
£17.64
-
Original price
£17.64
Original price
£17.64
£17.64
-
£17.64
Current price
£17.64
The KR37CAKEEG is an attractive rugged automotive rocker switch from the KR series by APEM, green 12V LED illumination. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Green LED 12V LED voltage (On)-Off-(On) momentary SPDT contacts Quick connect terminals Compatible with U2292 and U3152 connectors Silver contacts Protection level: IP68 Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP68 |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
