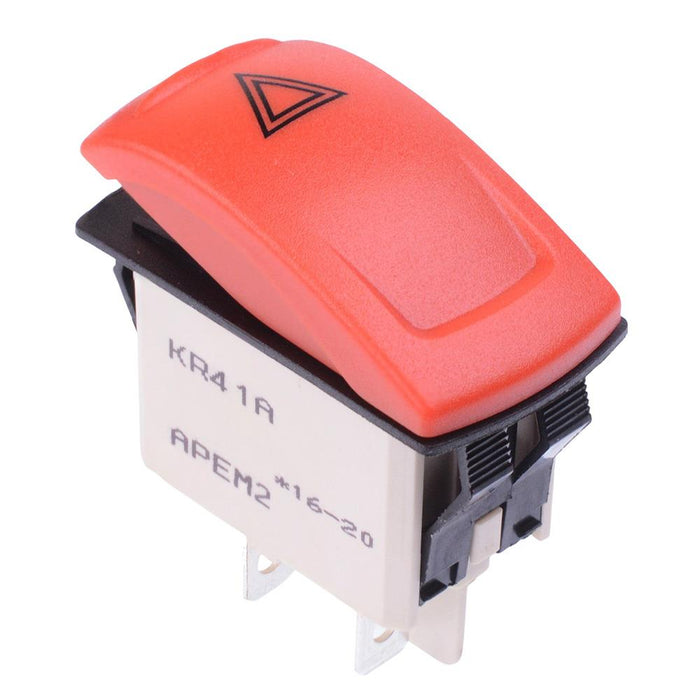

KR412AXXXA16N13XXXX APEM On-Off Red Hazard Warning Light Automotive Rocker Switch DPST
by APEM
SKU 487829
MPN: KR412AXXXA16N13XXXX
Availability:
24 in stock
Original price
£15.05
-
Original price
£15.05
Original price
£15.05
£15.05
-
£15.05
Current price
£15.05
The KR412AXXXA16N13XXXX is an attractive rugged automotive rocker switch from the KR series by APEM, featuring DPST contacts and hazard warning symbol. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Hazard warning light symbol On-Off DPST contacts Solder / quick connect terminals Silver contacts Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPST |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
