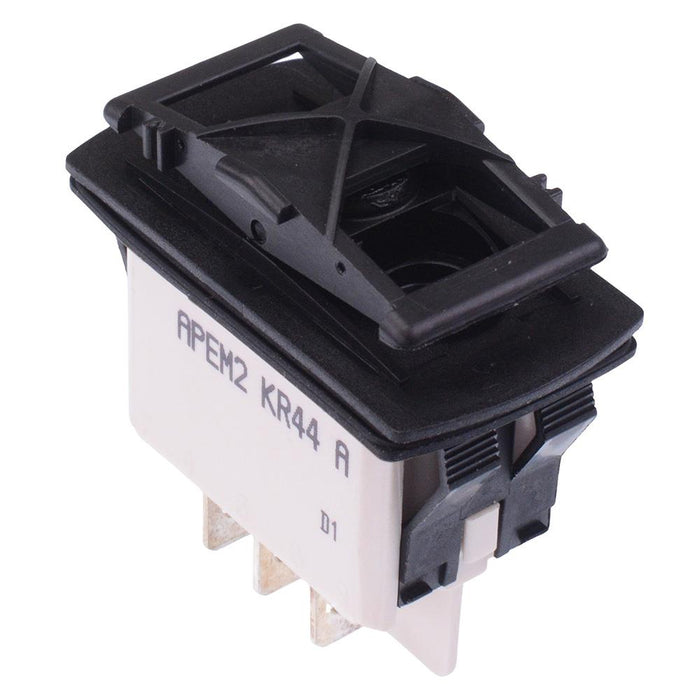

KR44CAKXXG APEM On-On-On Automotive Rocker Switch DPDT IP68
by APEM
SKU 488223
MPN: KR44CAKXXG
Availability:
Only 4 left!
Original price
£18.34
-
Original price
£18.34
Original price
£18.34
£18.34
-
£18.34
Current price
£18.34
The KR44CAKXXG is an attractive rugged automotive rocker switch from the KR series by APEM, featuring DPDT contacts and On-On-On function. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-On-On DPDT contacts Solder / quick connect terminals Silver contacts Compatible with U2292 and U3152 connectors Protection rating: IP68 Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
