KR45CAKJJG22NXXXX33 Load Tipping Momentary Red 24V LED Auto Rocker Switch DPDT IP68 APEM

by APEM
SKU 932754

MPN: KR45CAKJJG22NXXXX33

Availability:
Out of stock
Sold out
Original price £31.01 - Original price £31.01
Original price
£31.01
£31.01 - £31.01
Current price £31.01

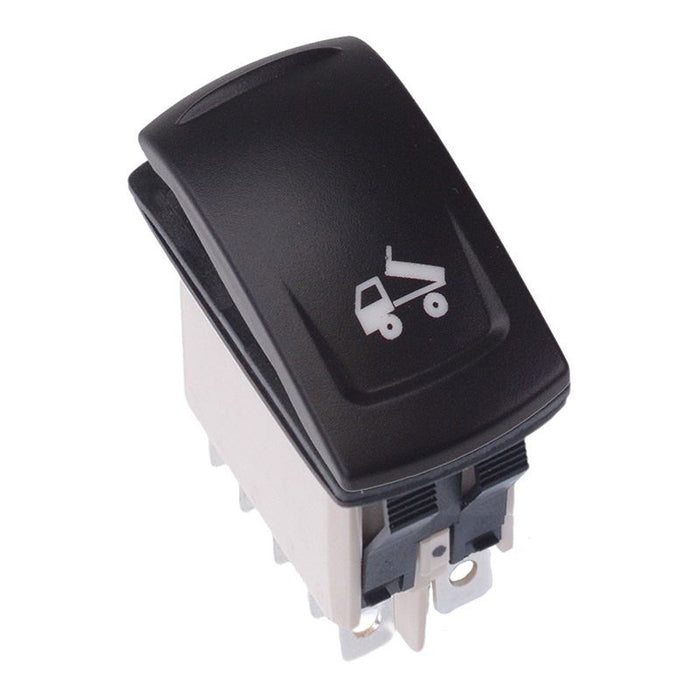

The KR45CAKJJG22NXXXX33 is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.

  • Momentary (On)-On DPDT contacts
  • Red 24V LED
  • illuminated symbols
  • Solder / quick connect terminals
  • 10 terminals for use with U2292
  • Silver contacts
  • Sealed to IP68
  • Specification
    Actuation Momentary
    Back Order Lead Time 5 Days
    Contact Configuration DPDT
    Contact Rating 5A 24VDC
    Current Rating 5A
    Illuminated Yes
    Illumination Voltage 24VDC
    Material PA66
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 36.8 x 21.08mm
    Panel Thickness 2-3.5mm
    Protection Level IP68
    Switch Operation (On)-On
    Terminal Type Quick Connect
    Voltage Rating 24VDC
