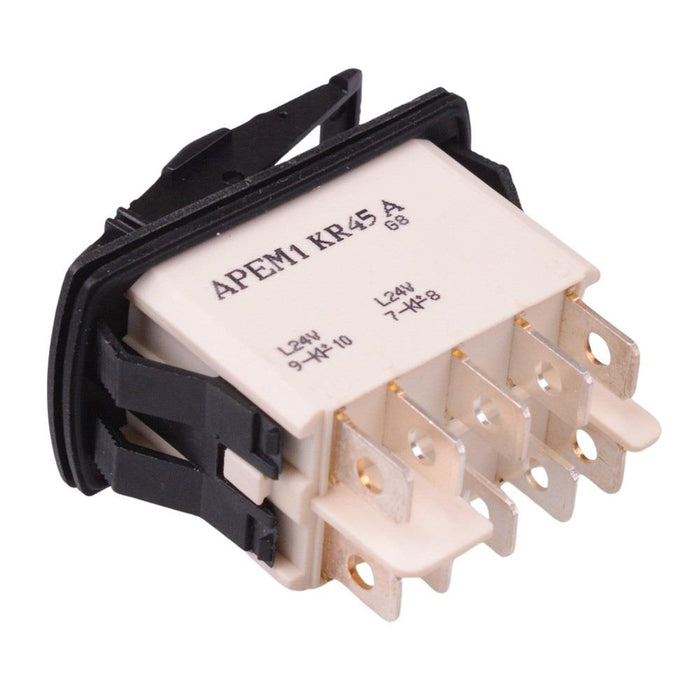

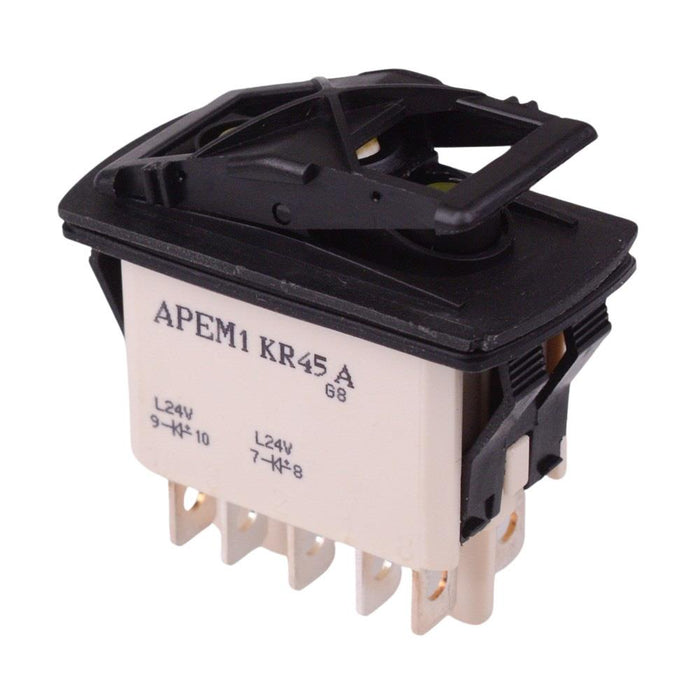

KR45CAKLLG On-(On) Auto Rocker Switch Yellow 24V illuminated DPDT IP68

by APEM
SKU 490045

MPN: KR45CAKLLG

Availability:
9 in stock
Original price £18.22 - Original price £18.22
Original price
£18.22
£18.22 - £18.22
Current price £18.22
The KR45CAKLLG is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

  • (On)-On DPDT contacts
  • Solder/Quick connect terminals
  • 24V Yellow illumination
  • IP68 Rated Protection
  • Silver contacts
  • Rating: 5A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Compatible with U2292 and U3152 connector
  • Specification
    Actuation Momentary
    Contact Configuration DPDT
    Contact Material Silver
    Contact Rating 5A 24VDC
    Current Rating 5A
    Illuminated Yes
    Illumination Colour Yellow
    Illumination Voltage 24V
    MOQ 1
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 36.8 x 21.08mm
    Panel Thickness 0.8mm to 4.6mm
    Protection Level IP68
    Switch Operation On-(On)
    Terminal Type Quick Connect
    Voltage Rating 24VDC
