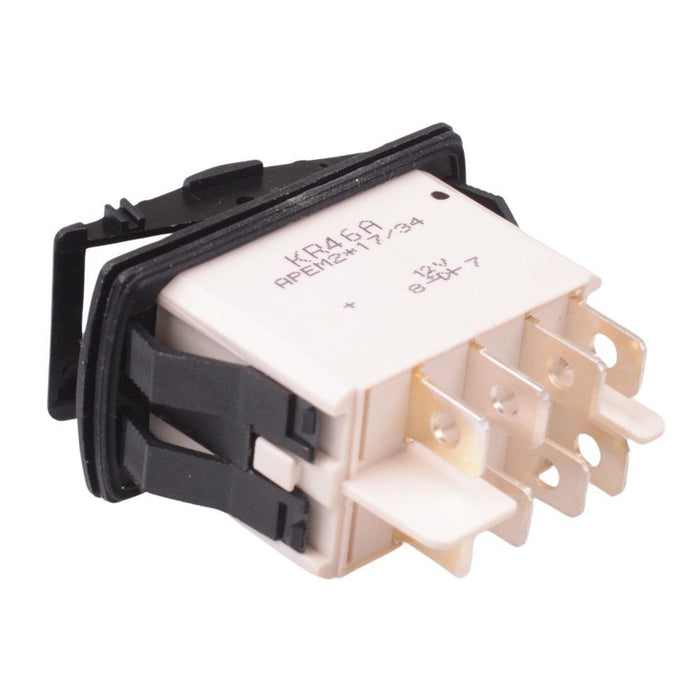

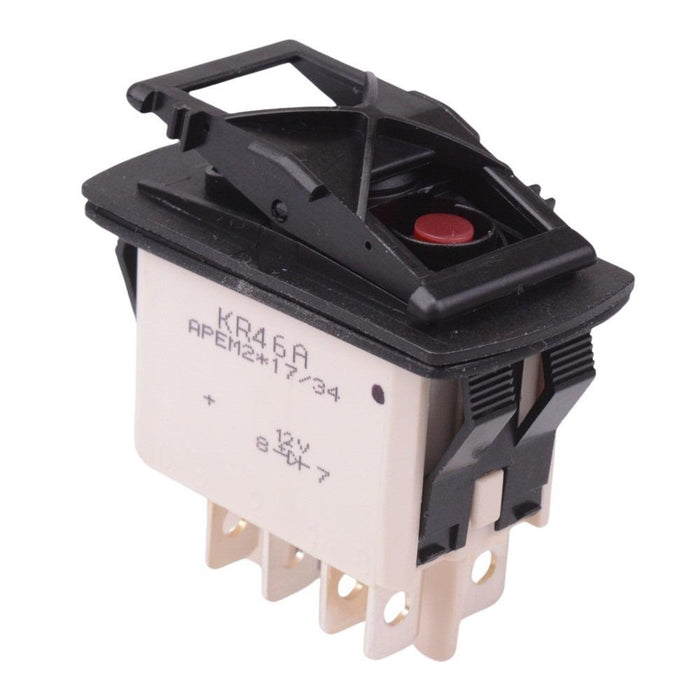

KR46CAKDXG On-On Auto Rocker Switch Red 12V illuminated DPDT IP68
by APEM
SKU 490046
MPN: KR46CAKDXG
Availability:
10 in stock
Original price
£16.57
-
Original price
£16.57
Original price
£16.57
£16.57
-
£16.57
Current price
£16.57
The KR46CAKDXG is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-On DPDT contacts Solder/Quick connect terminals 12V Red illumination IP68 Rated Protection Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
Actuation | Latching |
Contact Configuration | DPDT |
Contact Material | Silver |
Contact Rating | 5A 24VDC |
Current Rating | 5A |
Illuminated | Yes |
Illumination Colour | Red |
Illumination Voltage | 12V |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 0.8mm to 4.6mm |
Protection Level | IP68 |
Switch Operation | On-On |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
