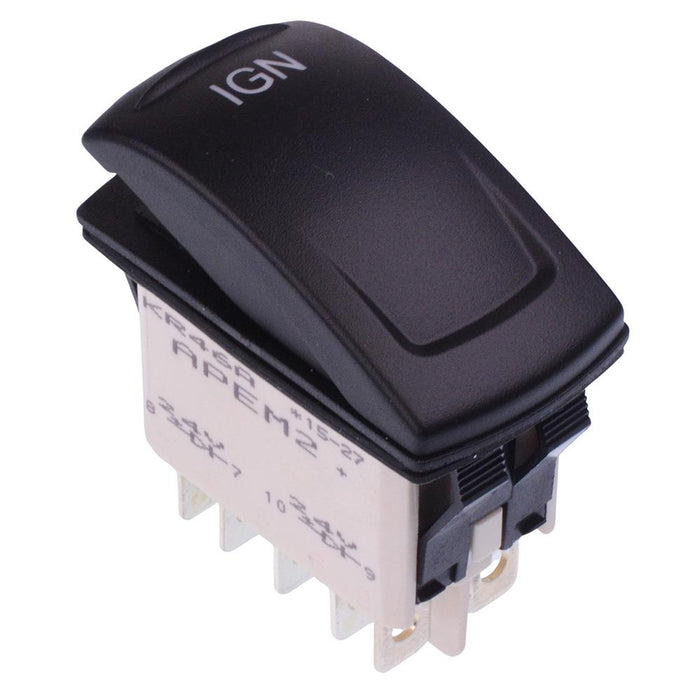

KR46CAKJJG22ND5XXXX APEM IGN On-On Red LED 24V Automotive Rocker Switch DPDT IP68
by APEM
SKU 487223
MPN: KR46CAKJJG22ND5XXXX
Availability:
316 in stock
Original price
£19.97
-
Original price
£19.97
Original price
£19.97
£19.97
£19.97
-
£19.97
Current price
£19.97
The KR46CAKJJG22ND5XXXX is an attractive rugged automotive rocker switch from the KR series by APEM, featuring On-On momentary function and red 24V LED with IGN symbol. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Red 24V LED IGN symbol On-On DPDT contacts Solder / quick connect terminals Silver contacts Protection level: IP68 Compatible with U2292 and U3152 connectors Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
