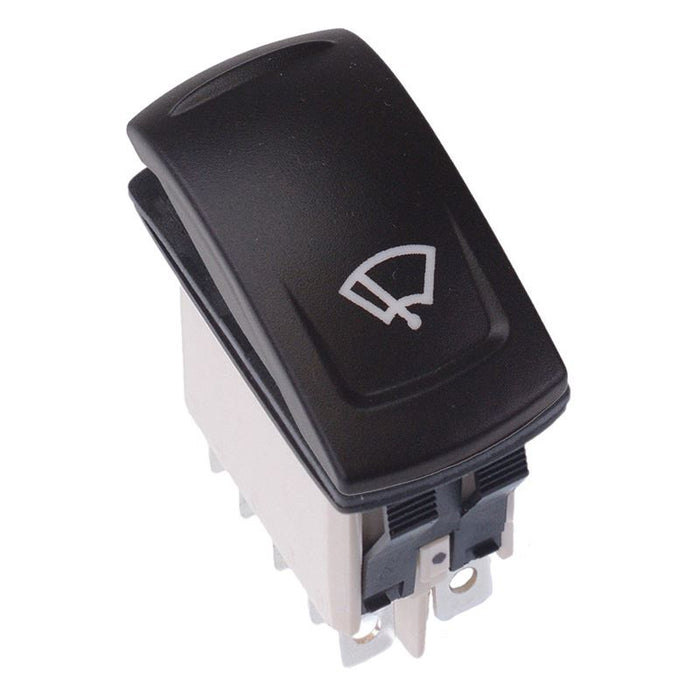

KR46CAKJJG22NXXXX21 Windshield Wiper Latching Red 24V LED Auto Rocker Switch DPDT IP68 APEM
by APEM
SKU 932724
MPN: KR46CAKJJG22NXXXX21
Availability:
20 in stock
Original price
£27.40
-
Original price
£27.40
Original price
£27.40
£27.40
-
£27.40
Current price
£27.40
The KR46CAKJJG22NXXXX21 is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
On-On DPDT contacts
Red 24V LED
illuminated symbols
Solder / quick connect terminals
10 terminals for use with U2292
Silver contacts
Sealed to IP68
Specification
Actuation | Latching |
Back Order Lead Time | 5 Days |
Contact Configuration | DPDT |
Contact Rating | 5A 24VDC |
Current Rating | 5A |
Illuminated | Yes |
Illumination Voltage | 24VDC |
Material | PA66 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 2-3.5mm |
Protection Level | IP68 |
Switch Operation | On-On |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
