KR46CAKXXG22NXXXX15 Driver Light Latching Auto Rocker Switch DPDT IP68 APEM
by APEM
SKU 932713
MPN: KR46CAKXXG22NXXXX15
Availability:
Only 2 left!
Original price
£24.85
-
Original price
£24.85
Original price
£24.85
£24.85
-
£24.85
Current price
£24.85

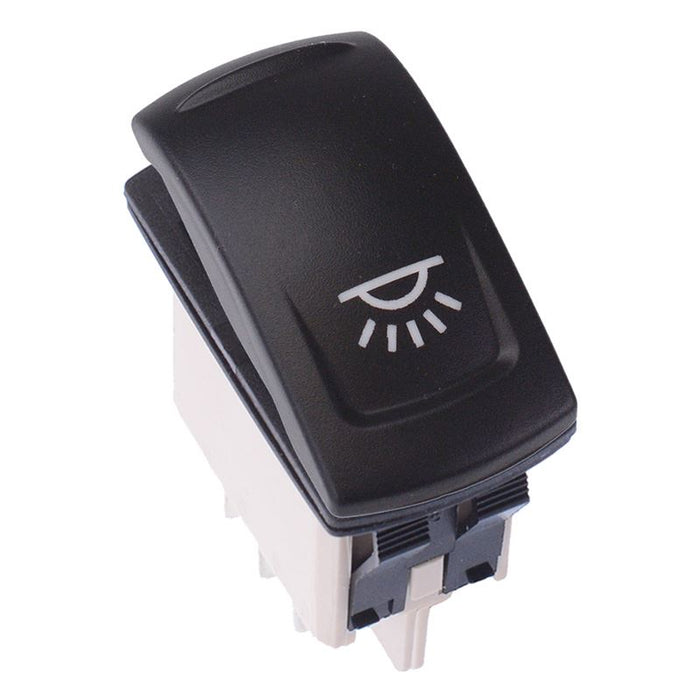

The KR46CAKXXG22NXXXX15 is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
On-On DPDT contacts
Solder / quick connect terminals
10 terminals for use with U2292
Silver contacts
Sealed to IP68
Specification
Actuation | Latching |
Back Order Lead Time | 5 Days |
Contact Configuration | DPDT |
Contact Rating | 5A 24VDC |
Current Rating | 5A |
Illuminated | No |
Material | PA66 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 2-3.5mm |
Protection Level | IP68 |
Switch Operation | On-On |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
