KR47JAKEEG APEM (On)-Off-(On) Momentary Green LED 12V Automotive Rocker Switch DPDT IP68

SKU 487734


15 in stock
Original price £18.94 - Original price £18.94
Original price
£18.94 Inc VAT
£18.94 - £18.94
Current price £18.94 Inc VAT

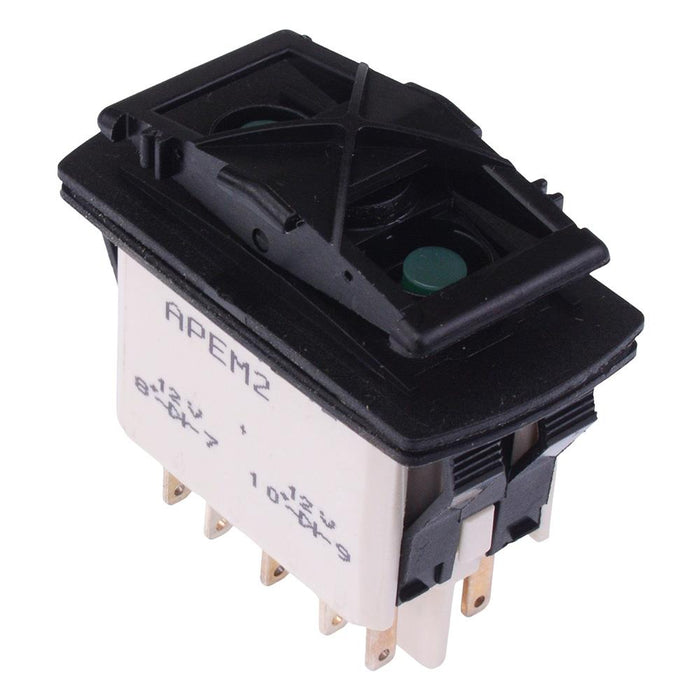

The KR47JAKEEG is an attractive rugged automotive rocker switch from the KR series by APEM, featuring (On)-Off-(On) momentary function and green 12V LED. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

  • Green 12V LED
  • (On)-Off-(On) momentary DPDT contacts
  • 2.8mm quick connect terminals
  • Silver contacts
  • Protection level: IP68
  • Compatible with U2282 connectors
  • Rating: 5A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Silver
    Contact rating 5A 24VDC
    Current rating 5A
    Electrical life 100,000 Cycles
    Illuminated Yes
    Illumination colour Green
    Illumination voltage 12VDC
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 36.8 x 21.08mm
    Panel thickness 0.8-4.6mm
    Protection level IP68
    Switch operation (On)-Off-(On)
    Terminal type Quick Connect
    Voltage rating 24VDC
