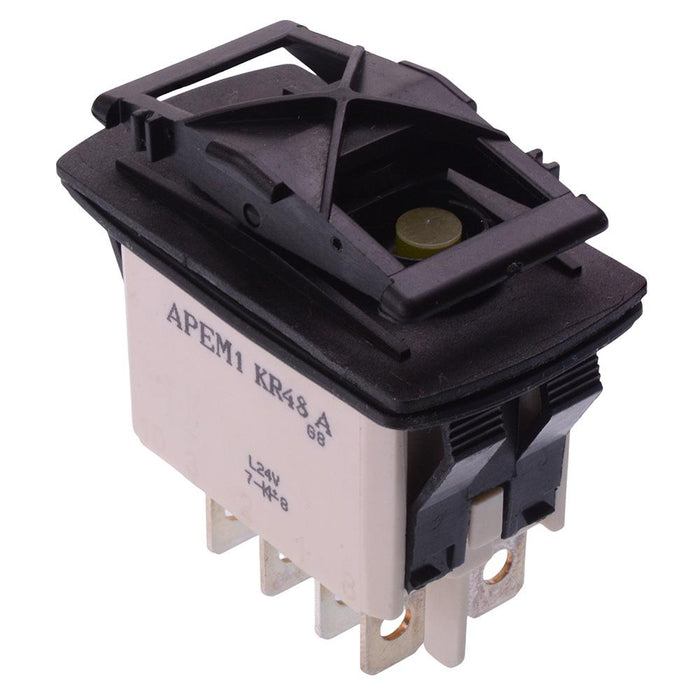

KR48CAKLXG APEM On-Off-(On) Momentary Yellow LED 24V Automotive Rocker Switch DPDT IP68
by APEM
SKU 487898
MPN: KR48CAKLXG
Availability:
20 in stock
Original price
£17.71
-
Original price
£17.71
Original price
£17.71
£17.71
£17.71
-
£17.71
Current price
£17.71
The KR48CAKLXG is an attractive rugged automotive rocker switch from the KR series by APEM, featuring On-Off-(On) momentary function and yellow 24V LED. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Yellow 24V LED in 1 position On-Off-(On) momentary DPDT contacts Solder / quick connect terminals Silver contacts Protection level: IP68 Compatible with U2292 and U3152 connectors Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 24VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
