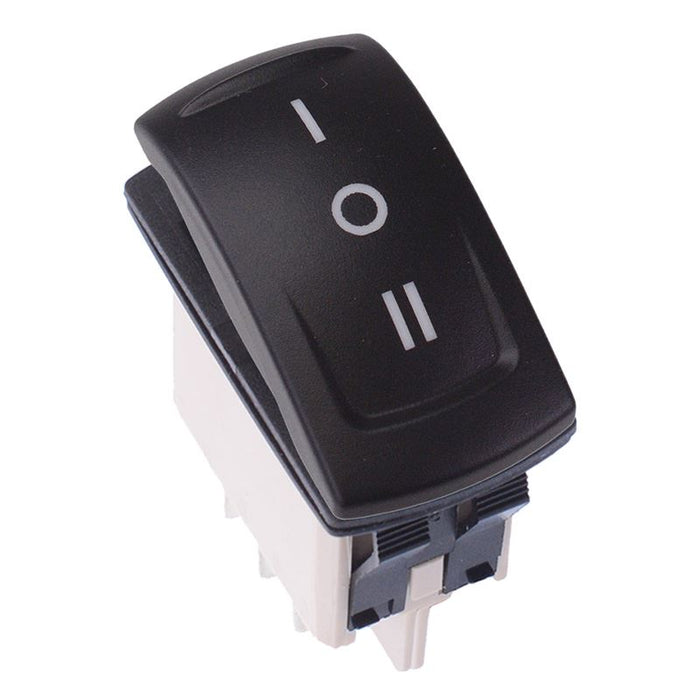

KR48CAKXXG22N040305 APEM On-Off-(On) Momentary Automotive Rocker Switch DPDT IP68

SKU 932681

MPN: KR48CAKXXG22N040305

Out of stock
Sold out
Original price £28.61 - Original price £28.61
Original price
£28.61 Inc VAT
£28.61 - £28.61
Current price £28.61 Inc VAT
The KR48CAKDXG22N040305 is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.

  • On-Off-(On) Momentary DPDT contacts
  • Solder / quick connect terminals
  • 10 terminals for use with U2292
  • Silver contacts
  • Sealed to IP68
  • Specification
    Actuation Latching / Momentary
    Back order lead time 5 Days
    Contact configuration DPDT
    Contact rating 5A 24VDC
    Current rating 5A
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 36.8 x 21.08mm
    Panel thickness 2-3.5mm
    Protection level IP68
    Switch operation On-Off-(On)
    Terminal type Quick Connect
    Voltage rating 24VDC
