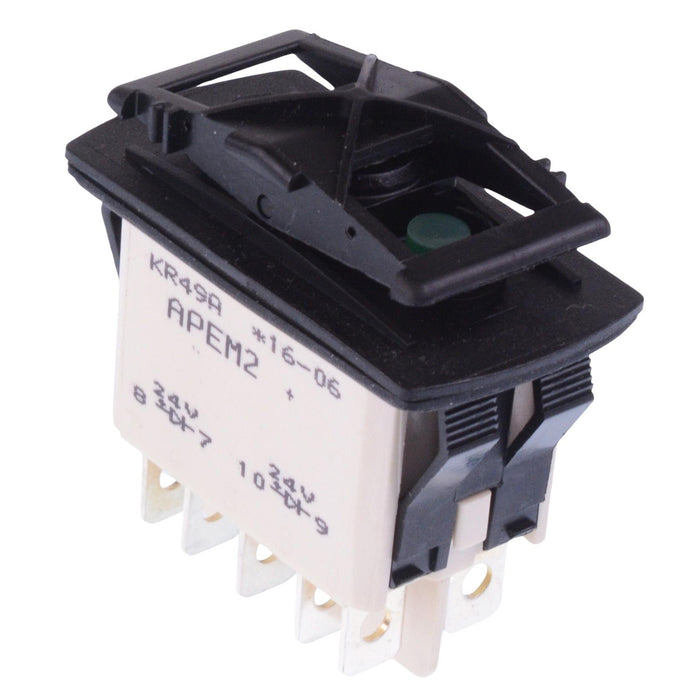

KR49CAKKKG APEM On-Off-On Green LED 24V Automotive Rocker Switch DPDT IP68
by APEM
SKU 487808
MPN: KR49CAKKKG
Availability:
14 in stock
Original price
£17.49
-
Original price
£17.49
Original price
£17.49
£17.49
-
£17.49
Current price
£17.49
The KR49CAKKKG is an attractive rugged automotive rocker switch from the KR series by APEM, featuring On-Off-On function and green 24V LED. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Green 24V LED On-Off-On DPDT contacts Solder / quick connect terminals Silver contacts Protection level: IP68 Compatible with U2292 and U3152 connectors Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 24VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
