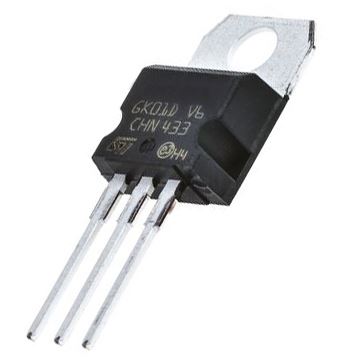

L7806CV +6V Voltage Regulator 1.5A ST
by ST
SKU 551136
MPN: L7806CV
Availability:
Out of stock
Sold out
Original price
£0.71
-
Original price
£0.71
Original price
£0.71
£0.71
£0.71
-
£0.71
Current price
£0.71
Three terminal voltage regulator providing a fixed 6V output and 1.5A regulated output current. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. These devices can be used with external components to obtain adjustable voltage and currents.
Output Voltage: 6V Output Current: 1A Package: TO-220 Maximum Input Voltage: 35V
Specification
| Back Order Lead Time | 5 Days |
| Dropout Voltage | 2V |
| Maximum Input Voltage | 35V |
| Maximum Output Current | 1.5A |
| Mounting Type | Through Hole |
| Number of Pins | 3 |
| Output Type | Fixed |
| Output Voltage | 6V |
| Package | TO-220 |
| Temperature Range | 0°C to +125°C |
