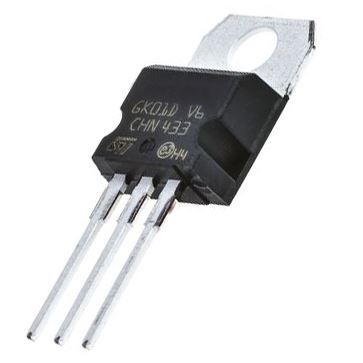

L7812CV +12V Voltage Regulator 1.5A ST
by ST
SKU 551139
MPN: L7812CV
Availability:
6 in stock
Original price
£0.71
-
Original price
£0.71
Original price
£0.71
Inc VAT
£0.71
-
£0.71
Current price
£0.71
Inc VAT
Three terminal voltage regulator providing a fixed 12V output and 1.5A regulated output current. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. These devices can be used with external components to obtain adjustable voltage and currents.
Output Voltage: 12V Output Current: 1A Package: TO-220 Maximum Input Voltage: 35V
Specification
Back order lead time | 5 Days |
Dropout voltage | 2V |
Maximum input voltage | 35V |
Maximum output current | 1.5A |
Mounting type | Through Hole |
Number of pins | 3 |
Output type | Fixed |
Output voltage | 12V |
Package | TO-220 |
Temperature range | 0°C to +125°C |
