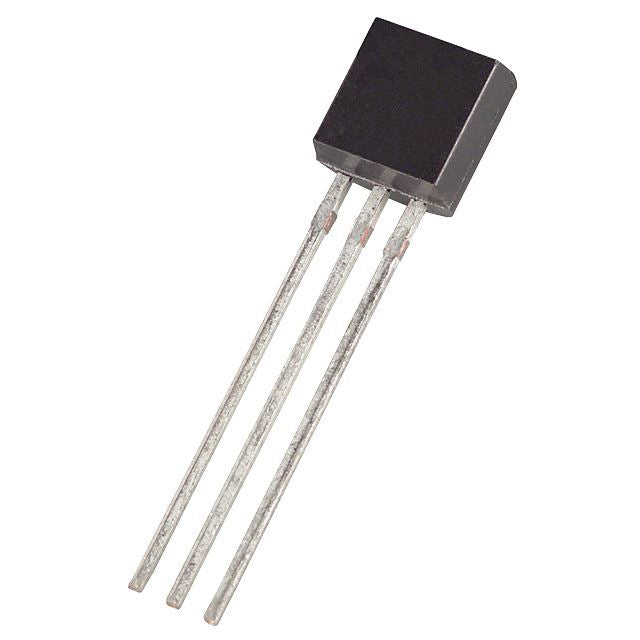

L78L15ACZ +15V Voltage Regulator 100mA ST

by ST
SKU 551153

MPN: L78L15ACZ

Availability:
426 in stock
Original price £0.36 - Original price £0.36
Original price
£0.36 Inc VAT
£0.36 - £0.36
Current price £0.36 Inc VAT
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on- card regulation for elimination of noise and distribution problems associated with single-point regulation.

  • Output Voltage: 15V
  • Dropout Voltage: 1.7V
  • Output Current: 100mA
  • Maximum Supply Voltage: 35V
  • Package: TO-92
  • Specification
    Back order lead time 5 Days
    Dropout voltage 1.7V @ 40mA
    Maximum input voltage 30V
    Maximum output current 0.1A
    Mounting type Through Hole
    Number of pins 3
    Output type Fixed
    Output voltage 15V
    Package TO-92
    Temperature range 0°C to +125°C
