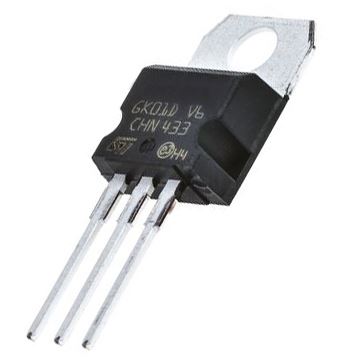

L7905CV -5V Voltage Regulator 1.5A ST
by ST
SKU 551143
MPN: L7905CV
Availability:
25 in stock
Original price
£0.68
-
Original price
£0.68
Original price
£0.68
£0.68
£0.68
-
£0.68
Current price
£0.68
Three terminal voltage regulator providing a fixed negative 5V output and 1.5A regulated output current. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. These devices can be used with external components to obtain adjustable voltage and currents.
Output Voltage: -5V Output Current: 1A Package: TO-220 Maximum Input Voltage: -35V
Specification
| Back Order Lead Time | 5 |
| Dropout Voltage | 1.1V |
| Maximum Input Voltage | -35V |
| Maximum Output Current | 1.5A |
| MOQ | 5 |
| Mounting Type | Through Hole |
| Number of Pins | 3 |
| Output Type | Fixed |
| Output Voltage | -5V |
| Package | TO-220 |
| Temperature Range | 0°C to +125°C |
