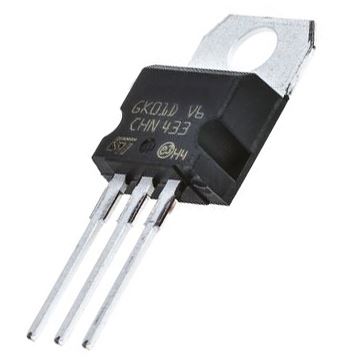

L7912CV -12V Voltage Regulator 1.5A ST
by ST
SKU 551144
MPN: L7912CV
Availability:
Out of stock
Sold out
Original price
£0.68
-
Original price
£0.68
Original price
£0.68
Inc VAT
£0.68
-
£0.68
Current price
£0.68
Inc VAT
Three terminal voltage regulator providing a fixed negative 12V output and 1.5A regulated output current. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. These devices can be used with external components to obtain adjustable voltage and currents.
Output Voltage: -12V Output Current: 1A Package: TO-220 Maximum Input Voltage: -35V
Specification
| Back order lead time | 5 Days |
| Dropout voltage | 1.1V |
| Maximum input voltage | -35V |
| Maximum output current | 1.5A |
| Mounting type | Through Hole |
| Number of pins | 3 |
| Output type | Fixed |
| Output voltage | -12V |
| Package | TO-220 |
| Temperature range | 0°C to +125°C |
