Large Floor Pressure Mat 720 x 560mm
SKU 552451
MPN: 552451
Availability:
Out of stock
Sold out
Original price
£11.92
-
Original price
£11.92
Original price
£11.92
£11.92
£11.92
-
£11.92
Current price
£11.92

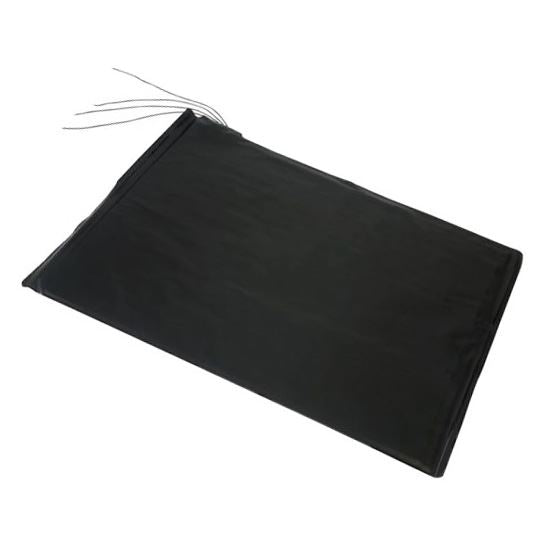

Large pressure sensitive mat featuring NO contacts, suitable for applications including alarm systems, automatic doors, patient bed monitoring and seat occupancy detection.
Normally open contacts Dimensions: 720 x 560 x 3mm Operating pressure: 25kg over 50mm² Mat material: Seem welded PVC 150mm of 0.22mm² Black PVC insulated cable Maximum switching voltage: 25V DC Maximum switching current: 0.25A
Specification
| Back Order Lead Time | 150 |
| Colour | Black |
| Contact Configuration | Normally Open |
| Current Rating | 0.25A |
| MOQ | 1 |
| Operating Force | 25Kg over 50mm² |
| Protection Level | IP64 |
| Voltage Rating | 25VDC |
