Large SMD Grade 2 Armoured NO Proximity Switch and Magnet Set 500mA 50V - CEA403, S2022DR

by Comus
SKU 552636

MPN: S2022DR

Only 4 left!
Original price £15.94 - Original price £15.94
Original price
£15.94 Inc VAT
£15.94 - £15.94
Current price £15.94 Inc VAT

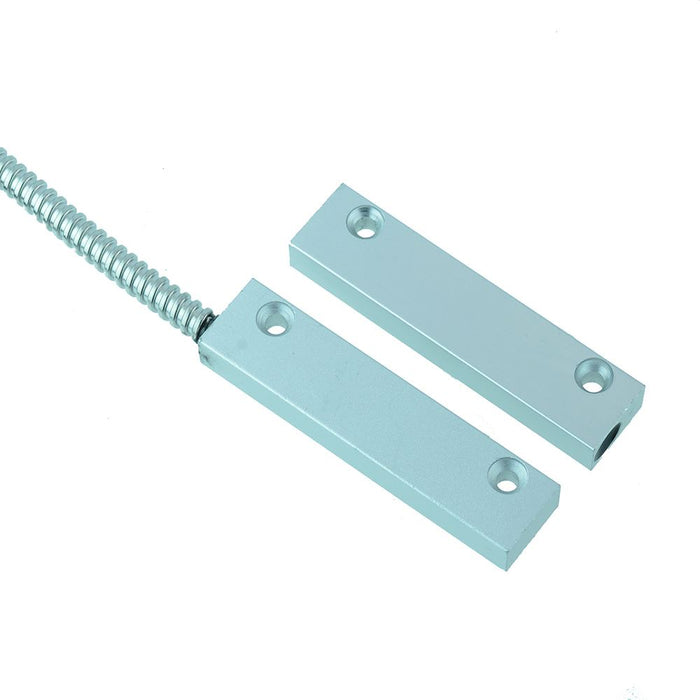

The CEA403 is a flush mounting proximity reed switch and magnet set, featuring normally open contacts and aluminium housing. The switch is suitable for applications including alarm systems, appliance switching, production automation and safety door guards.

  • Security grade 2 to BS EN 50131-1
  • 750mm cable with 500mm armouring
  • Normally open contacts
  • Supervisory loop
  • Operating distance: 30mm
  • Maximum switching voltage: 50V AC/DC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W/VA
  • Aluminium housing
  • Specification
    Back order lead time 180 Days
    Carry current 0.8A
    Contact configuration SPST-NO
    Material Aluminium
    Maximum switching capacity 10W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 50VAC/DC
    Operating temperature -40°C to +85°C
    Request a quote
