Latching On-On Foot Switch 3PDT

SKU 119002

MPN: 119002

Availability:
29 in stock
Original price £4.45 - Original price £4.45
Original price
£4.45
£4.45 - £4.45
Current price £4.45

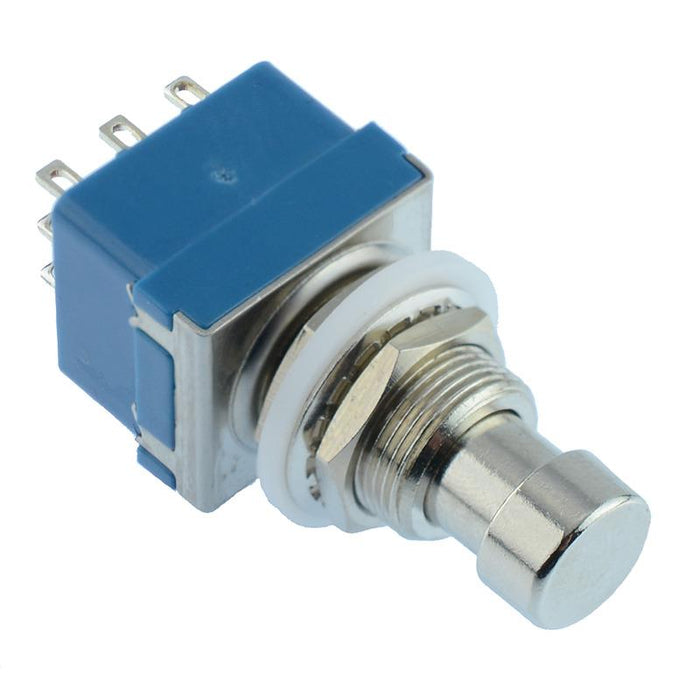

3PDT footswitch with a latching push button action, ideal for machinery and music applications including foot pedals.

  • 3PDT contacts
  • Latching action
  • Solder terminals
  • Suitable for panel mounting and secured by nut
  • Panel cut-out: 12mm
  • Maximum Panel Thickness: 4mm
  • Dimensions: 42.1 x 17 x 19.6mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back Order Lead Time 40 Days
    Contact Configuration 3PDT
    Contact Rating 3A 250VAC, 6A 125VAC
    Current Rating 6A @ 125VAC
    Electrical Life 50,000 Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +85°C
    Panel Cut Out 12mm
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 250VAC
