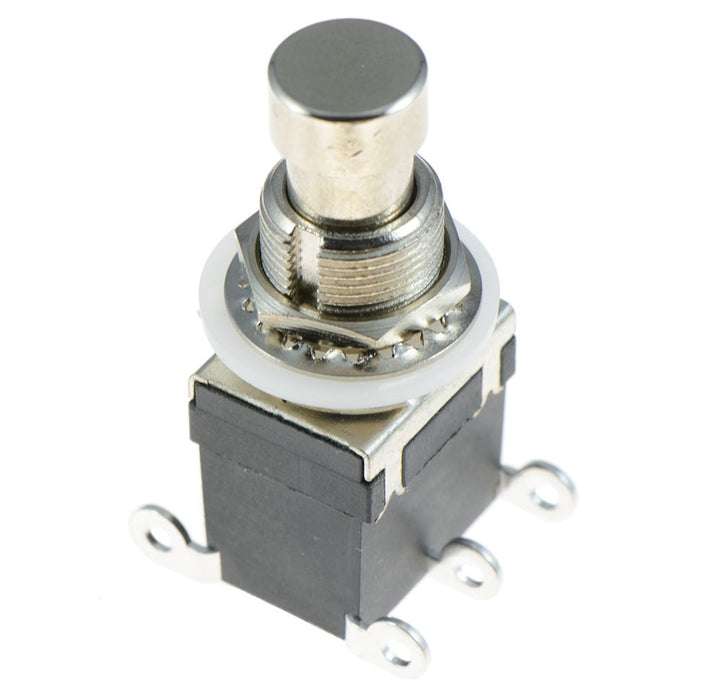

Latching On-On Foot Switch DPDT Side Mount Terminals

SKU 119001

MPN: 119001

Availability:
116 in stock
Original price £3.89 - Original price £3.89
Original price
£3.89 Inc VAT
£3.89 - £3.89
Current price £3.89 Inc VAT
DPDT footswitch with a latching push button action, ideal for machinery and music applications including foot pedals.

  • DPDT contacts
  • Latching action
  • Side mounted solder terminals
  • Suitable for panel mounting and secured by nut
  • Panel cut-out: 12mm
  • Maximum Panel Thickness: 4mm
  • Dimensions: 42.5 x 17.2 x 23.5mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Contact configuration DPDT
    Contact rating 2A 250VAC
    Current rating 2A
    Electrical life 10,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
