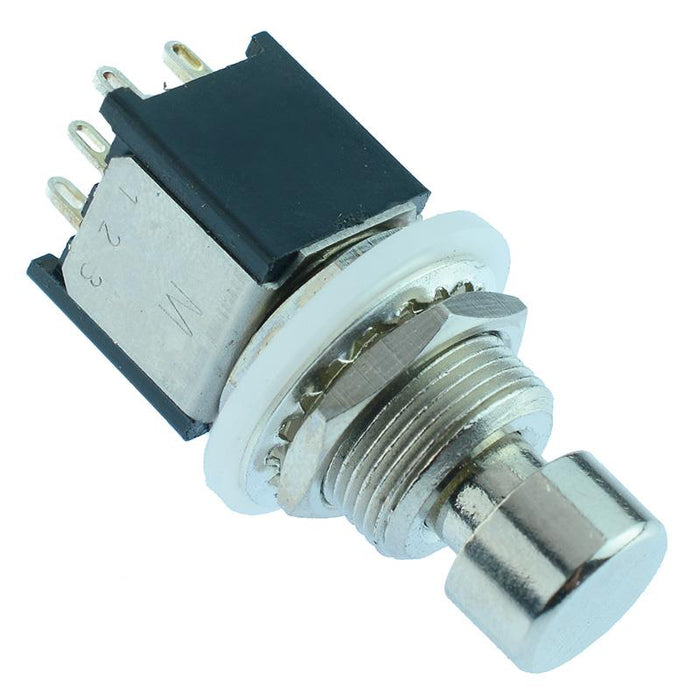

Latching On-On Foot Switch DPDT
SKU 120018
MPN: 120018
Availability:
88 in stock
Original price
£3.27
-
Original price
£3.27
Original price
£3.27
£3.27
£3.27
-
£3.27
Current price
£3.27
Heavy duty footswitch with a latching operation designed to be operated by foot. The switch has solder lug terminals and is suitable for panel mounting making it ideal for music applications.
DPDT contacts On-on action Solder lug terminals Requires 12mm panel cut-out 2A maximum current 250VAC maximum voltage Dimensions: 33.5 x 12 x 13.4mm (Height x Width x Length) Maximum Panel Thickness: 4mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | DPDT |
| Contact Rating | 2A 250VAC, 4A 125VAC |
| Current Rating | 4A @ 125VAC |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Panel Cut Out | 12mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
