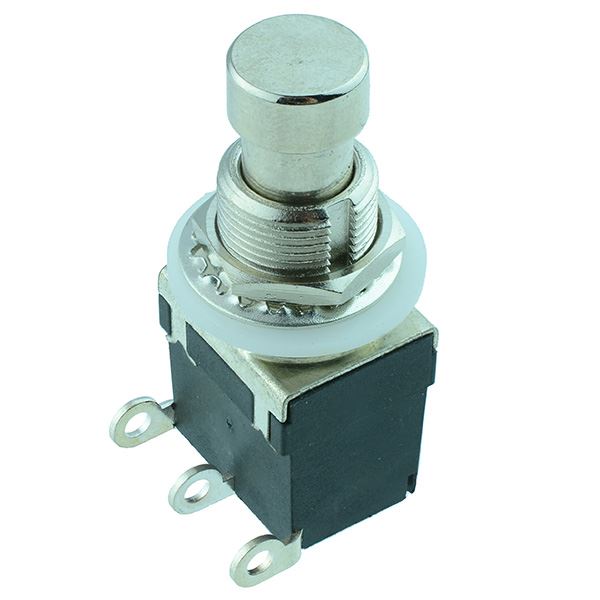

Latching On-On Foot Switch SPDT Side Mount Terminals
SKU 480895
MPN: 480895
Availability:
81 in stock
Original price
£4.12
-
Original price
£4.12
Original price
£4.12
£4.12
£4.12
-
£4.12
Current price
£4.12
SPDT footswitch with a latching push button action, ideal for machinery and music applications including foot pedals.
SPDT contacts Latching action Side mounted solder terminals Suitable for panel mounting and secured by nut Panel cut-out: 12mm Maximum Panel Thickness: 4mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 2A 250VAC |
| Current Rating | 2A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
