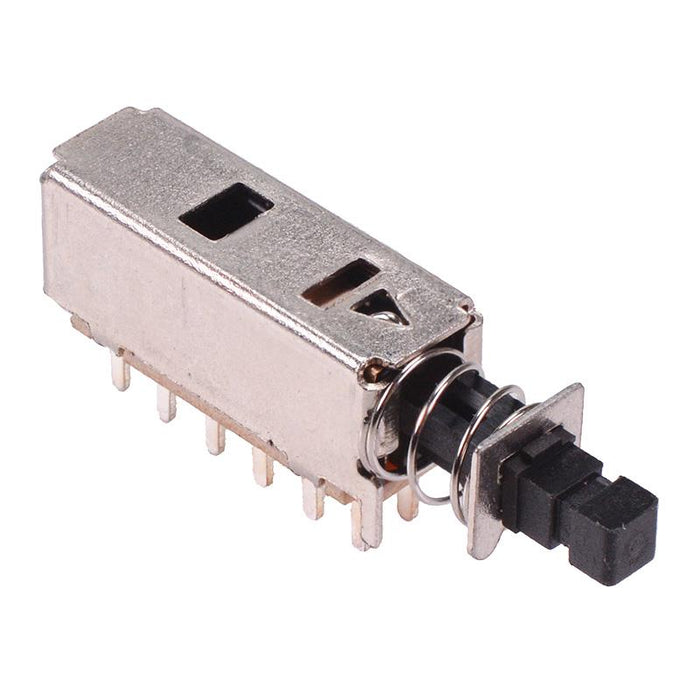

Latching PCB Push Button Switch 4PDT
SKU 482799
MPN: 482799
Availability:
Out of stock
Sold out
Original price
£0.44
-
Original price
£0.44
Original price
£0.44
£0.44
£0.44
-
£0.44
Current price
£0.44
Latching push button switch featuring DPDT contacts and a compact package, suitable for mounting horizontally to PCBs.
Latching mechanism 4PDT contacts Rating: 0.5A 50VDC Solder PCB terminals 3.2mm terminal pitch Dimensions: 34.9 x 12.3 x 7.6mm (Length x Height x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | 4PDT |
| Contact Rating | 0.5A 50VDC |
| Current Rating | 0.5A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Poles | 4 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 3.2mm |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 50VDC |
