LB1P-1T04Y Yellow 24V Round Flush 16mm Pilot Light IDEC
by IDEC
SKU 493205
MPN: LB1P-1T04Y
Availability:
10 in stock
Original price
£10.97
-
Original price
£10.97
Original price
£10.97
£10.97
£10.97
-
£10.97
Current price
£10.97

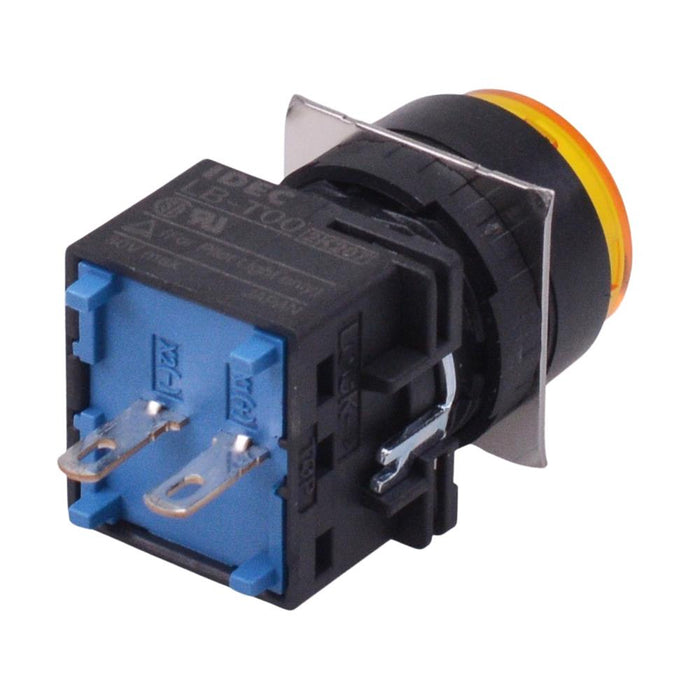

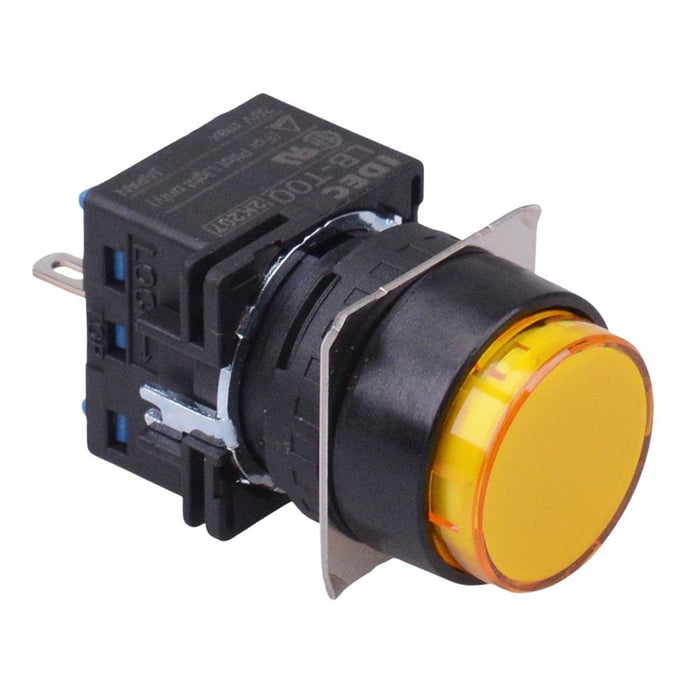

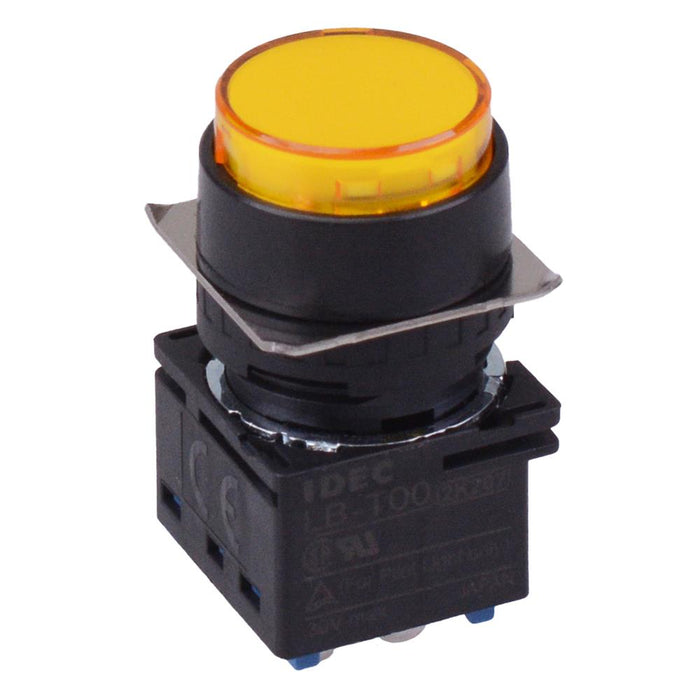

The LB1P-1T04Y is a yellow pilot light manufactured by IDEC, featuring 24V LED illumination and flush round lens. The pilot light is designed for 16mm panel cut-outs and is suitable for use in a wide range of control panels.
Yellow LED Forward voltage: 24VAC/DC Rated current: 5mA Panel cut-out: 16mm Panel thickness: 0.5 to 3.2mm Protection rating: IP65 Solder/tab terminals Dimensions: 36.9 x 18mm (height x diameter)
Specification
| Back Order Lead Time | 126 Days |
| Colour | Yellow |
| Diameter | 18mm |
| Forward Current | 5mA |
| Height | 36.9mm |
| Lamp Type | LED |
| Life Expectancy | 30,000 Hours |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 0.5-3.2mm |
| Protection Level | IP65 |
| Voltage Rating | 24V |
