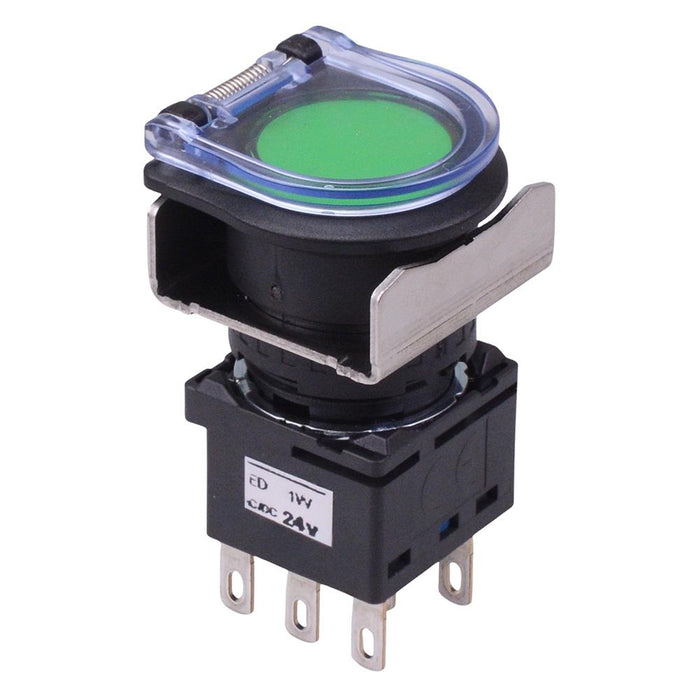

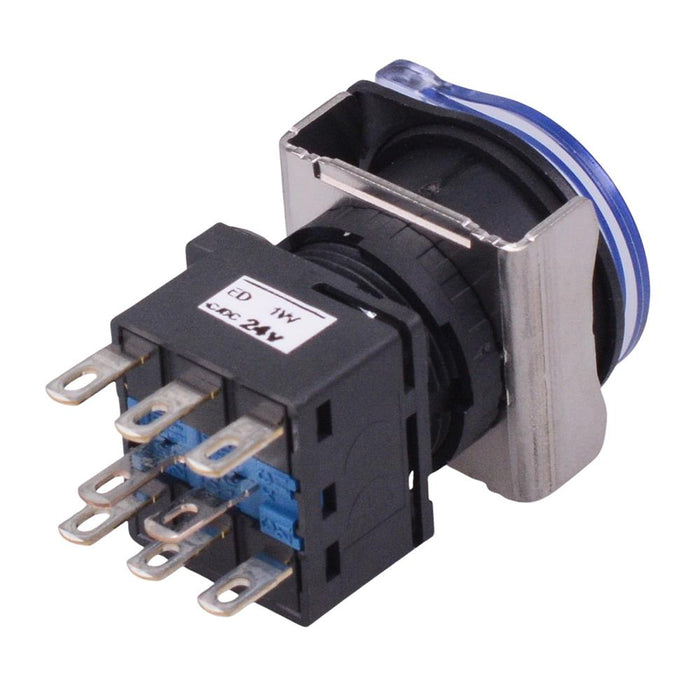

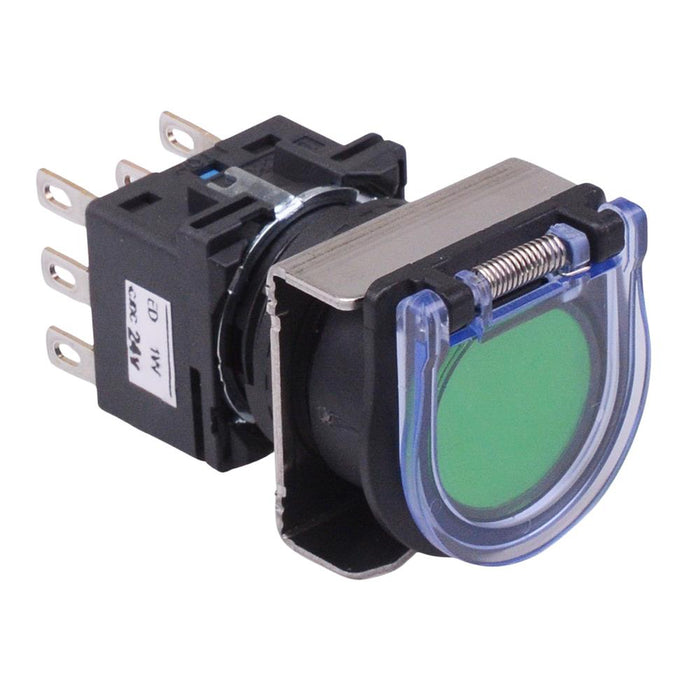

LB6GL-M1T64G Green 24V illuminated Momentary Round Flush 16mm Push Button Switch DPDT IDEC
by IDEC
SKU 493207
MPN: LB6GL-M1T64G
Availability:
10 in stock
Original price
£20.21
-
Original price
£20.21
Original price
£20.21
£20.21
-
£20.21
Current price
£20.21
The LB6GL-M1T64G is a momentary illuminated round flush push button switch with a guard and green 24V LED. The switch requires a 16mm panel cut-out and features IP65 protection rating, suitable for industrial applications requiring a high performance switch.
Green 24V LED Momentary operation Round flush operator with guard DPDT contacts Solder/tab 2.8x0.5mm terminals Panel cut-out: 16mm Panel thickness: 0.5 to 3.2mm Voltage rating: 250V Current rating: 3A Protection level: IP65 Dimensions: 22 x 36.9mm (diameter x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 126 Days |
| Colour | Green |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Flush |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 24VAC/DC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +60°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 0.5-3.2mm |
| Product Series | LB |
| Protection Level | IP65 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250V |
