LBW6ML-M2T14G IDEC 24V Green LED Metallic Round Momentary Extended 22mm Push Button Switch SPDT
by IDEC
SKU 490082
MPN: LBW6ML-M2T14G
Availability:
25 in stock
Original price
£33.62
-
Original price
£33.62
Original price
£33.62
£33.62
-
£33.62
Current price
£33.62

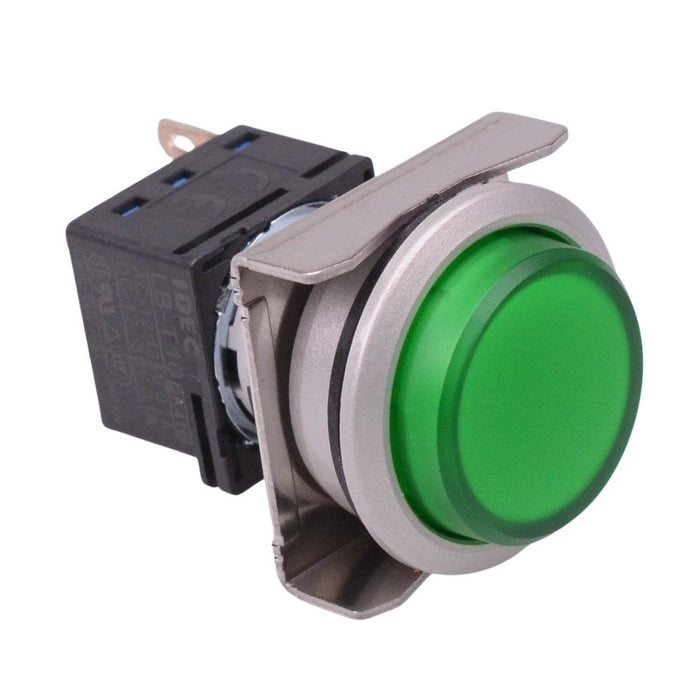

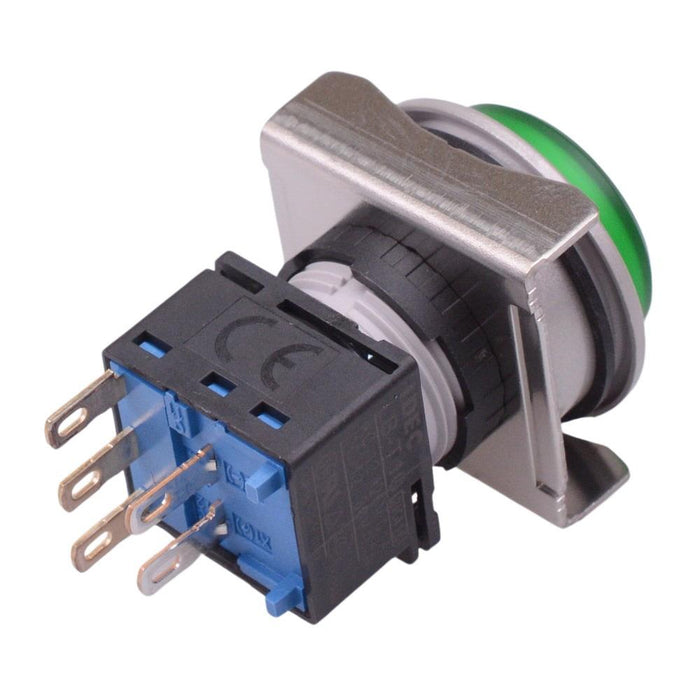

The LBW6ML-M2T14G is a extended operator push button switch featuring a smooth surface designed for use with busy control panels. The switch features a compact space-saving design allowing a reduced panel size while enhancing its functionality and controllability. The smooth surface design prevents particle and debris from accumulating and make regular cleaning a breeze. The LBW series is designed for applications including medical devices, food and beverage processing equipment, semi-conductor equipment, demo equipment, home automation and robotic control systems where a hygienic surface is required.
Round black bezel Momentary operation Extended operator Gold SPDT contacts Green LED illumination 24VAC/DC LED operating voltage Solder/tab 2.8x0.5mm terminals Rating: 250V 5A Panel cut-out: 22.3mm Panel thickness: 0.5-3.2mm Dimensions: 41.5 x 26mm (height x diameter)
Specification
Actuation | Momentary |
Colour | Green |
Contact Configuration | SPDT |
Contact Material | Gold |
Contact Rating | 5A 250V |
Current Rating | 5A |
Electrical Life | 50,000 Cycles |
Head Type | Round |
Illuminated | Yes |
Illumination Colour | Green |
Illumination Voltage | 24V |
MOQ | 1 |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -25°C to +60°C |
Panel Cut Out | 22.3mm |
Panel Thickness | 0.5-3.2mm |
Product Series | LBW |
Protection Level | IP65 |
Terminal Type | Solder/tab |
Voltage Rating | 250V |
