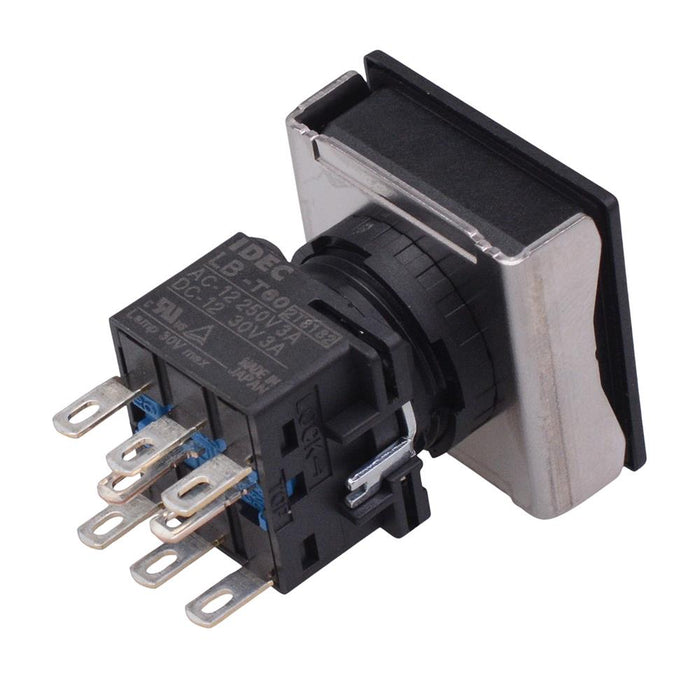

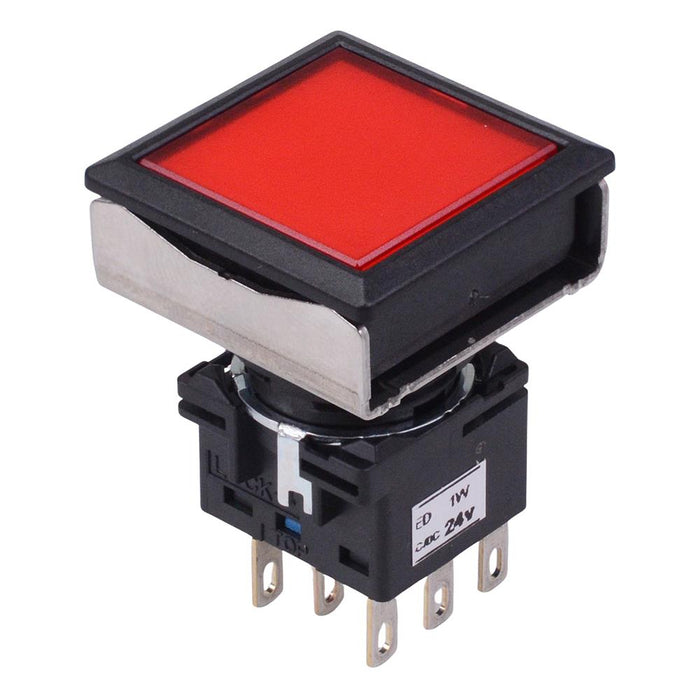

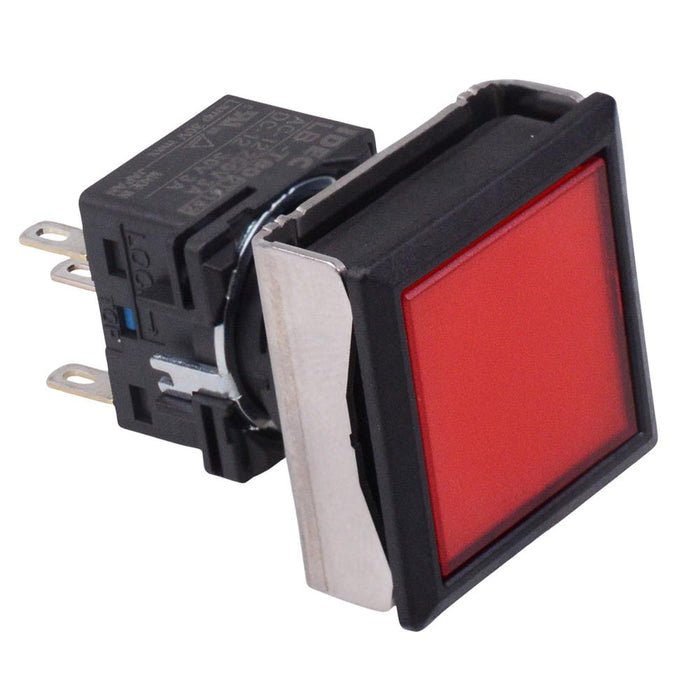

LBW7L-M1T64R Red 24V illuminated Momentary Square Flush 22.5mm Push Button Switch DPDT IDEC
by IDEC
SKU 493219
MPN: LBW7L-M1T64R
Availability:
10 in stock
Original price
£23.95
-
Original price
£23.95
Original price
£23.95
£23.95
-
£23.95
Current price
£23.95
The LBW7L-M1T64R is a flush mount push button switch featuring a smooth surface designed for use with busy control panels. The switch features a compact space-saving design allowing a reduced panel size while enhancing its functionality and controllability. The smooth surface design prevents particle and debris from accumulating and make regular cleaning a breeze. The LBW series is designed for applications including medical devices, food and beverage processing equipment, semi-conductor equipment, demo equipment, home automation and robotic control systems where a hygienic surface is required.
- Square black bezel
- Momentary operation
- Flush operator
- Silver DPDT contacts
- Red LED illumination
- 24VAC/DC LED operating voltage
- Solder/tab 2.8x0.5mm terminals
- Rating: 250V 5A
- Panel cut-out: 22.5 x 22.5mm
- Panel thickness: 0.5-3.2mm
- Dimensions: 36.9 x 26mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 126 Days |
| Colour | Red |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Flush |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22.5mm |
| Panel Thickness | 0.5-3.2mm |
| Product Series | LBW |
| Protection Level | IP65 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250V |
