LCB60-F Female 2-Pin Silver Plated Connector 55A AMASS
by AMASS
SKU 490432
MPN: LCB60-F
Availability:
98 in stock
Original price
£4.42
-
Original price
£4.42
Original price
£4.42
£4.42
£4.42
-
£4.42
Current price
£4.42

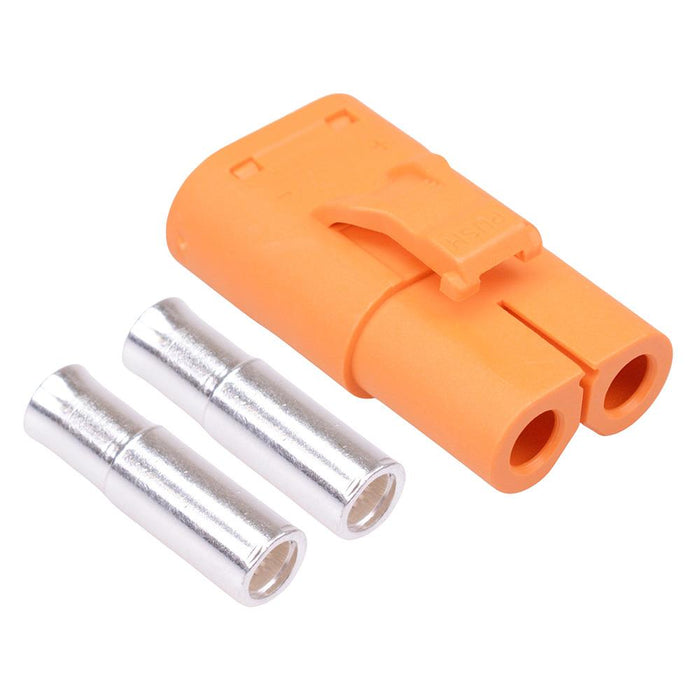

The LCB60-F is a female 2 pin power connector featuring a high temperature resistant nylon housing and silver plated contacts providing excellent conductivity. The connector is designed for soldering and suitable for a wide range of power and battery connectivity applications.
2 pins Contact material: silver plated copper Housing material: nylon Current rating: 55A Voltage rating: 1000VDC Wire size: 8-6AWG Dimensions: 45.0 x 26.8 x 20.1mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Contact Material | Silver Plated Copper |
| Contact Resistance | 0.60mΩ |
| Current Rating | 55A |
| Gender | Female |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 2 |
| Operating Temperature | -40°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 1000VDC |
| Wire Gauge | 8-6AWG |
