LCD Keypad 1602 16x2 Display Shield for Arduino UNO or Mega 2560
SKU 483138
MPN: 483138
Availability:
95 in stock
Original price
£6.45
-
Original price
£6.45
Original price
£6.45
£6.45
-
£6.45
Current price
£6.45

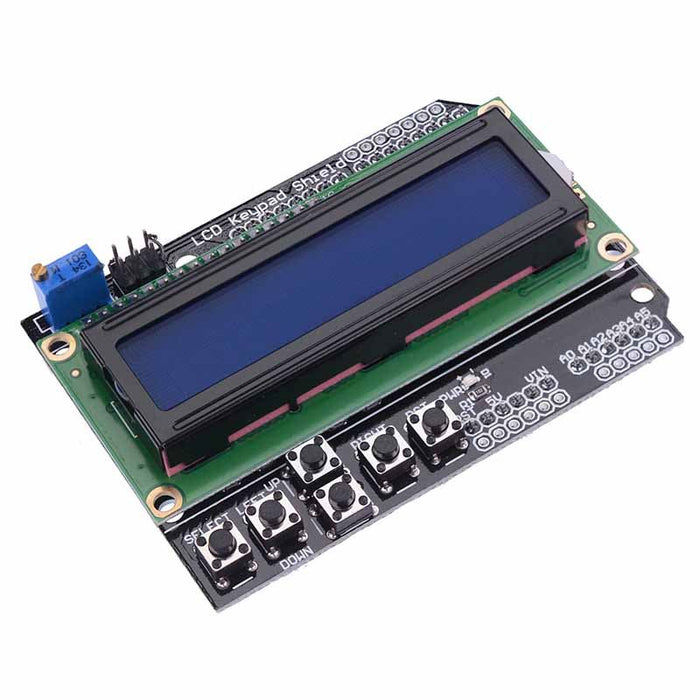

Blue 16 x 2 LCD display module shield featuring a keypad, adjustable contrast and backlight. The module sits on top of the Arduino UNO or Mega 2560 as a shield, or it can be connected using the headers.
Analog pin 0 is used to read push button data, pins 4, 5, 6, 7, 8, 9, 10 are used to interface with the LCD.
4 directional buttons, 1 select button, 1 reset button 16 x 2 display Chip operating voltage: 4.5-5.5V Operating current: 2.0mA Dimensions: 80 x 59mm
Pinout:Analog 0: Button Control Digital 4: DB4 Digital 5: DB5 Digital 6: DB6 Digital 7: DB7 Digital 8: RS (Data or Signal Display Selection) Digital 9: Enable Digital 10: Backlight Control
Analog pin 0 is used to read push button data, pins 4, 5, 6, 7, 8, 9, 10 are used to interface with the LCD.
Pinout:
Specification
Back Order Lead Time | 30 Days |
