Left Hand Reed Switch Flange Mount SPST-NC 500mA 100V - MMPSB 130/30, S1693B

by Comus
SKU 552611

MPN: S1693B

Out of stock
Sold out
Original price £6.61 - Original price £6.61
Original price
£6.61 Inc VAT
£6.61 - £6.61
Current price £6.61 Inc VAT

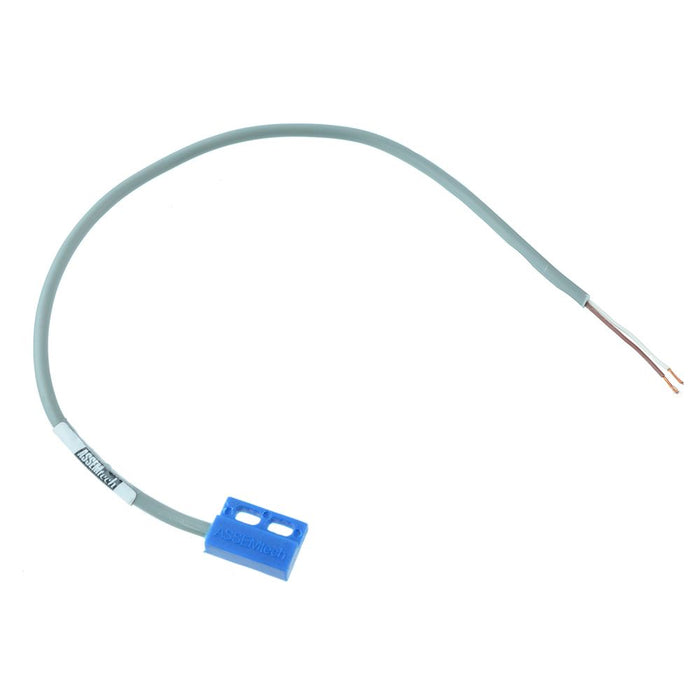

The MMPSB 130/30 is a rectangular reed switch featuring normally closed contacts and a blue nylon 66 case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: MMPSM
  • Left handed entry
  • Normally closed contacts
  • Blue nylon 66 case
  • Maximum switching voltage: 100VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 5W/VA
  • Switching distance: 8mm Min
  • 2 x Round 0.14mm² PVC covered Grey and insulated Brown / White cable
  • Specification
    Back order lead time 180 Days
    Contact configuration SPST-NC
    Material Nylon 66
    Maximum switching capacity 5W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 100VAC
    Operating temperature -20°C to +85°C
