Left Hand Reed Switch Flange Mount SPST-NC 500mA 100V - MPSB 130/30, S1683B

by Comus
SKU 552605

MPN: S1683B

Availability:
11 in stock
Original price £6.61 - Original price £6.61
Original price
£6.61 Inc VAT
£6.61 - £6.61
Current price £6.61 Inc VAT

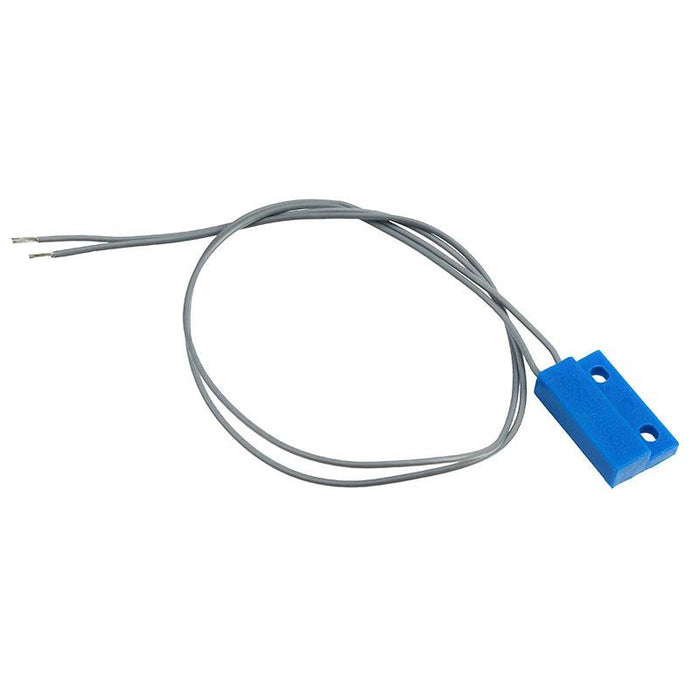

The MPSB 130/30 is a rectangular reed switch featuring normally closed contacts and a glass filled nylon case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: MPSM
  • Left handed entry
  • Normally closed contacts
  • Glass filled nylon case
  • Maximum switching voltage: 100VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 5W/VA
  • Switching distance: 8mm Min
  • 2 x Round 0.25mm² irradiated insulated grey cable
  • Specification
    Back order lead time 180 Days
    Contact configuration SPST-NC
    Material Glass Filled Nylon
    Maximum switching capacity 5W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 100VAC
    Operating temperature -40°C to +105°C
