Left Hand Reed Switch Flange Mount SPST-NO 500mA 400V - MPSA 240/30, S1683

by Comus
SKU 552604

MPN: S1683

20 in stock
Original price £7.02 - Original price £7.02
Original price
£7.02 Inc VAT
£7.02 - £7.02
Current price £7.02 Inc VAT

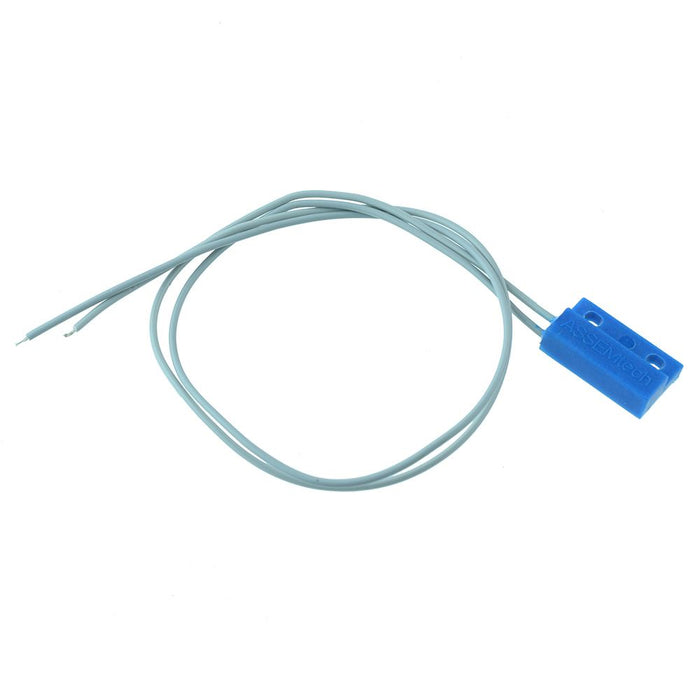

The MPSA 240/30 is a rectangular reed switch featuring normally open contacts and a glass filled nylon case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: MPSM
  • Left handed entry
  • Normally open contacts
  • Glass filled nylon case
  • Maximum switching voltage: 400VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W/VA
  • Switching distance: 8mm Min
  • 2 x Round 0.25mm² irradiated insulated grey cable
  • Specification
    Back order lead time 180 Days
    Contact configuration SPST-NO
    Material Glass Filled Nylon
    Maximum switching capacity 10W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 400VAC
    Operating temperature -40°C to +105°C
