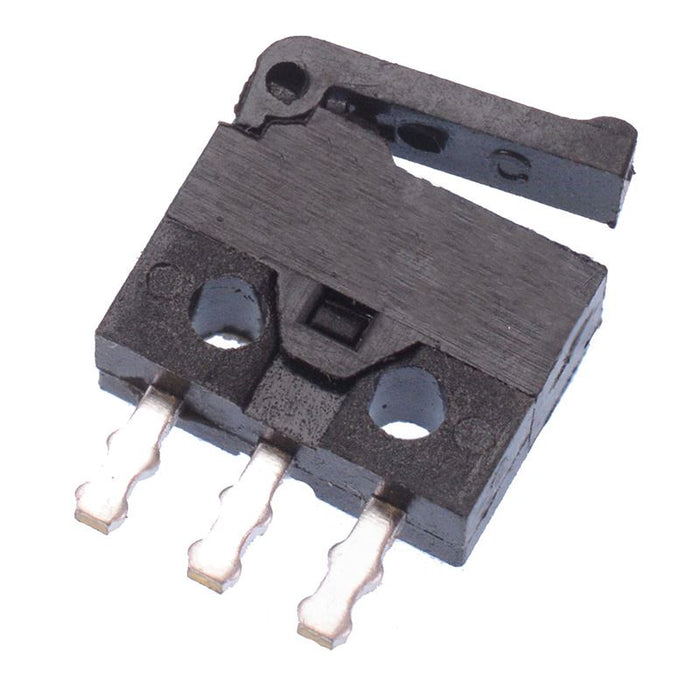

Lever Microminiature Microswitch SPDT
SKU 483501
MPN: 483501
Availability:
819 in stock
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
Inc VAT
£0.78
-
£0.78
Current price
£0.78
Inc VAT
Micro miniature microswitch featuring a lever actuator and tiny package, suitable for low voltage applications with limited space.
- SPDT contacts
- 7.8mm length lever
- Solder terminals
- Operating force: 100gf
- Rating: 0.3A 6VDC
- Body dimensions: 8.3 x 6.5 x 2.7mm (height x length x width)
Specification
| Back order lead time | 45 Days |
| Contact configuration | SPDT |
| Contact rating | 0.3A 6VDC |
| Current rating | 0.3A |
| Electrical life | 50,000 Cycles |
| Mounting style | Electronics |
| Number of positions | 2 |
| Operating force | 100gf |
| Operating temperature | -25°C to +85°C |
| Terminal type | Through Hole |
| Voltage rating | 6VDC |
