LFB30-F Female 2-Pin Silver Plated Connector 35A AMASS
by AMASS
SKU 490444
MPN: LFB30-F
Availability:
240 in stock
Original price
£1.47
-
Original price
£1.47
Original price
£1.47
£1.47
£1.47
-
£1.47
Current price
£1.47

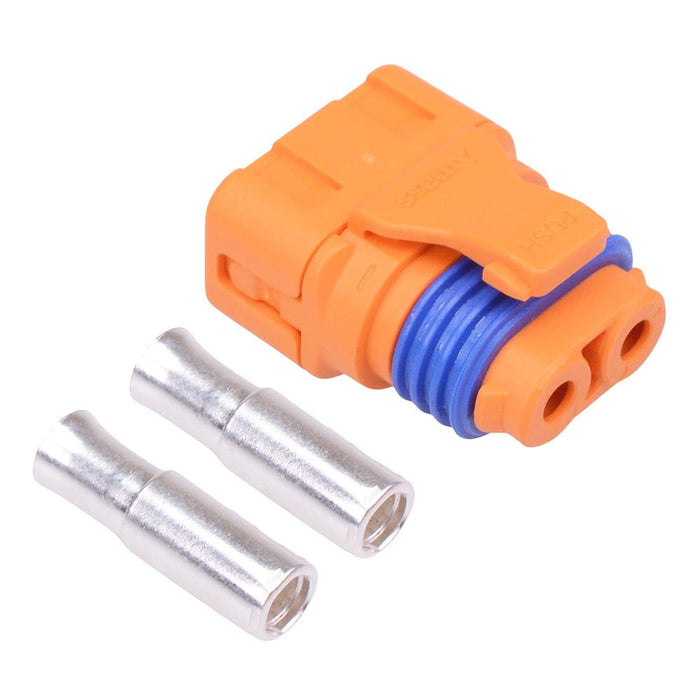

The LFB30-F is a fourth generation waterproof female connector by AMASS featuring a high temperature resistant PBT housing and silver plated contacts providing excellent conductivity. The connector is rated to IP67 providing protection against water ingress and providing safer electrical connection with minimal risk of short circuit. The connector is designed for soldering and suitable for a wide range of power and battery connectivity applications in harsh environments.
2 pins Contact material: silver plated copper Housing material: PBT Current rating: 35A Voltage rating: 600VDC Wire size: 14-12AWG Dimensions: 27.3 x 20.6 x 16.49mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Contact Material | Silver Plated Copper |
| Contact Resistance | 0.60mΩ |
| Current Rating | 35A |
| Gender | Female |
| Housing Material | PBT |
| MOQ | 1 |
| Number of Poles | 2 |
| Operating Temperature | -20°C to 120°C |
| Protection Level | IP67 |
| Termination Method | Solder |
| Voltage Rating | 600VDC |
| Wire Gauge | 14-12AWG |
