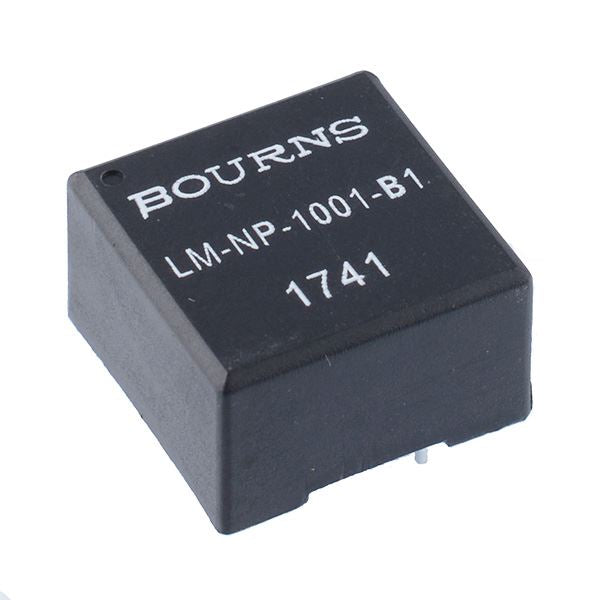

LM-NP-1001-B1L Line Matching Audio Transformer 600 ohm
by Bourns
SKU 480047
MPN: LM-NP-1001-B1L
Availability:
23 in stock
Original price
£2.72
-
Original price
£2.72
Original price
£2.72
Inc VAT
£2.72
-
£2.72
Current price
£2.72
Inc VAT
The LM-NP-1001-B1L is a line matching audio transformer featuring a fully encapsulated low profile design, meets the return loss specifications of BS6305.
High dielectric strength Ex-stock Applications include: line matching, fax modem
Specification
| Back order lead time | 5 Days |
| Frequency response | - 0.3dB |
| Insertion loss | 1.5dB Max @ 2kHz |
| Maximum ambient temperature | 60°C |
| Primary dc resistance | 66Ω |
| Primary impedance | 600Ω |
| Primary inductance | 2.8H |
| Ratio | 1:1 |
