LM324 Quad Op-Amp

These devices consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages.

Supply voltage: 16V to 32V

Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typical

Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground

Low Input Bias and Offset Parameters

Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32V

Open-Loop Differential Voltage Amplification: 100 V/mV Typical

Internal Frequency Compensation

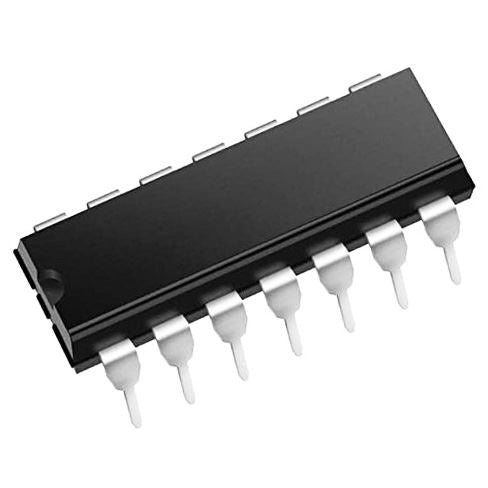

Package: DIL-14
