Long Lever V3 Microswitch SPDT 16A 250VAC
SKU 480399
MPN: 480399
Availability:
337 in stock
Original price
£1.21
-
Original price
£1.21
Original price
£1.21
£1.21
£1.21
-
£1.21
Current price
£1.21

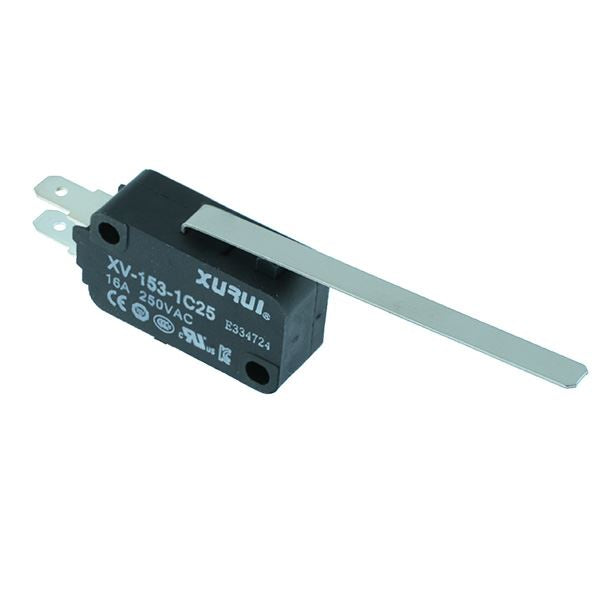

Standard size V3 microswitch featuring a long lever actuator and SPDT contacts. The switch is connected using the 4.8mm terminals and is suitable for a wide range of applications due to its compact size and reliability.
Long lever actuator Rating: 15A 250VAC NO / NC contacts 4.8mm quick connect terminals 1,000,000 operation life 70g operating force 6g release force
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Electrical Life | 100,000 Cycles |
| Number of Positions | 2 |
| Operating Force | 70g |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP40 |
| Release Force | 6g |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
