Long Paddle Momentary Off-(On) Black Toggle Switch SPST 20A
SKU 489282
MPN: ASW-13-111L
Availability:
223 in stock
Original price
£1.36
-
Original price
£1.36
Original price
£1.36
£1.36
£1.36
-
£1.36
Current price
£1.36

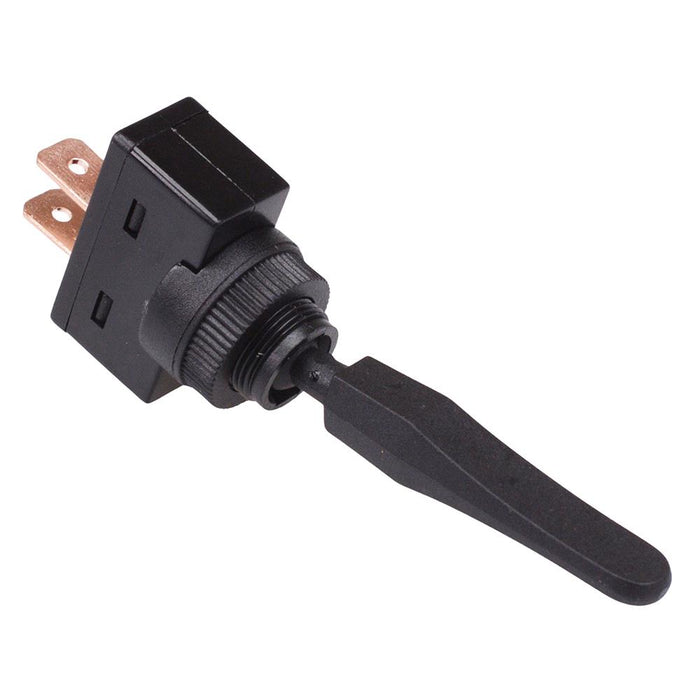

Off-(on) momentary toggle switch featuring a long black paddle and 20A current rating. The switch features 6.35mm quick connect terminals and require a 12mm panel cut-out diameter. The switch is suitable for a wide range of applications including automotive.

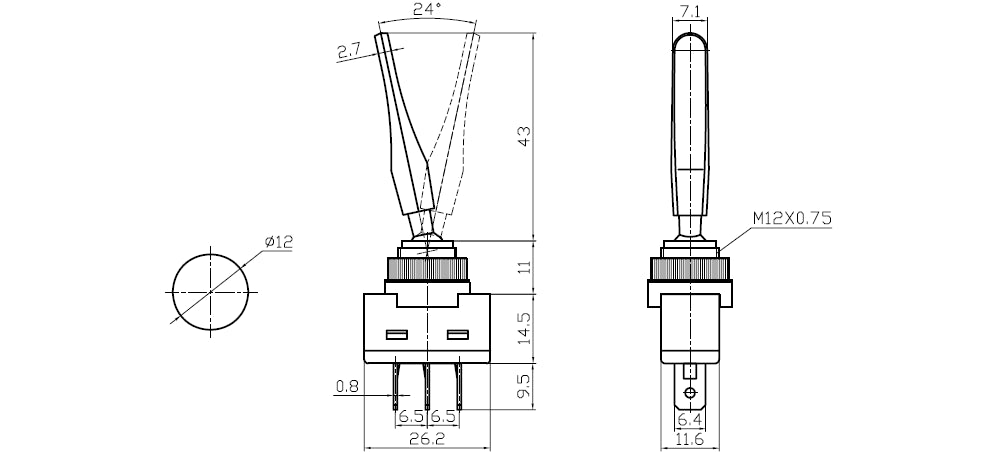

Off-(on) momentary action SPST contacts Panel cut-out: 12mm M12x0.75mm thread 6.35mm quick connect terminals 43mm length paddle
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
