Long Paddle On-Off Black Toggle Switch SPST 20A

SKU 489281

MPN: ASW-13-101L

Availability:
299 in stock
Original price £1.05 - Original price £1.05
Original price
£1.05 Inc VAT
£1.05 - £1.05
Current price £1.05 Inc VAT

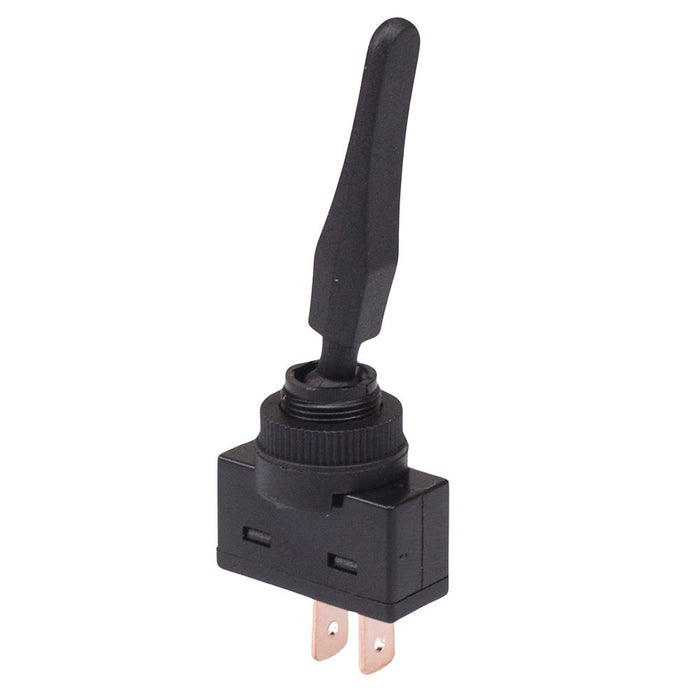

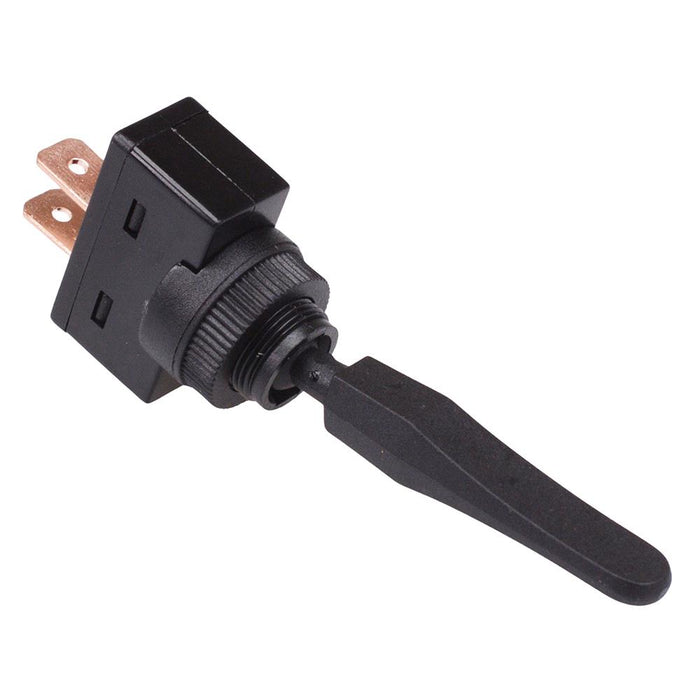

On-off toggle switch featuring a long black paddle and 20A current rating. The switch features 6.35mm quick connect terminals and require a 12mm panel cut-out diameter. The switch is suitable for a wide range of applications including automotive.

  • On-Off action
  • SPST contacts

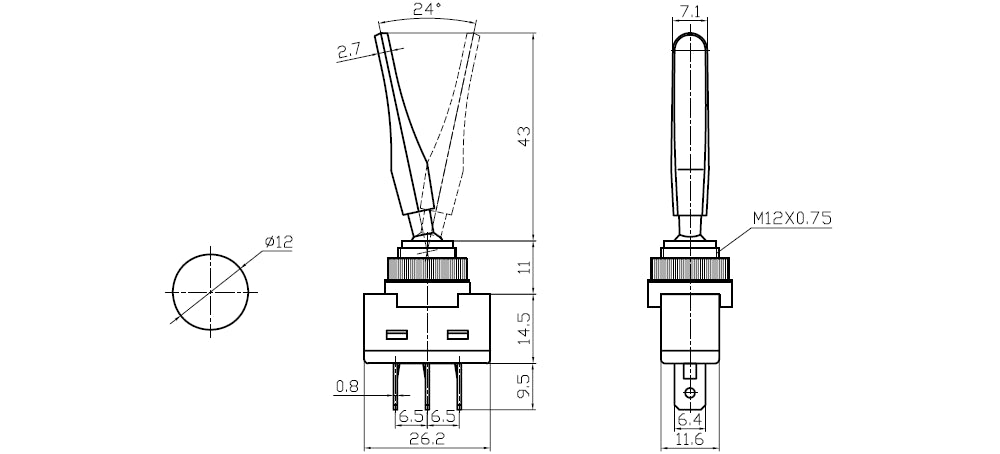

  • Panel cut-out: 12mm
  • M12x0.75mm thread
  • 6.35mm quick connect terminals
  • 43mm length paddle
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Contact configuration SPST
    Contact rating 20A 12VDC
    Current rating 20A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 12VDC
