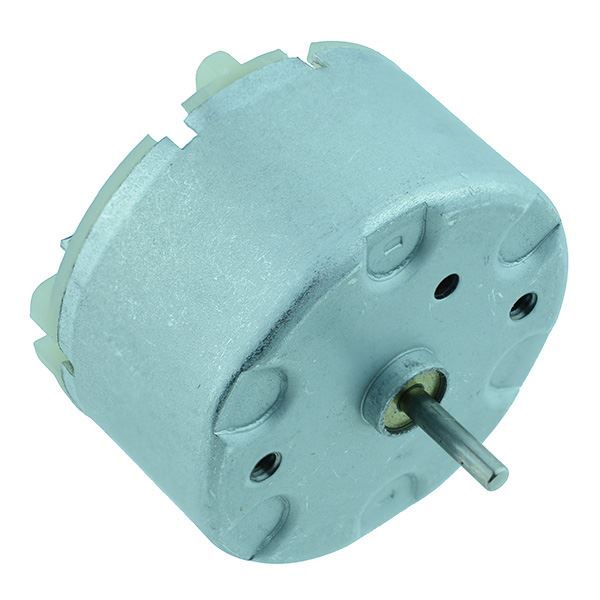

Low Inertia 6V Motor

SKU 480855

MPN: 480855

Availability:
1948 in stock
Original price £1.92 - Original price £1.92
Original price
£1.92
£1.92 - £1.92
Current price £1.92
Precision low inertia DC motor featuring a 1.5V to 9V operating range, clockwise rotation, suitable for use with solar modules and cells.

  • Nominal voltage: 6.0V
  • Operating voltage: 1.5-9.0V
  • No load speed: 2800rpm
  • No load current: 0.02A
  • Speed at maximum efficiency: 2300rpm
  • Current at maximum efficiency: 0.075A
  • Output: 0.24W
  • Dimensions: 32 x 19.5mm (Length x Diameter)
  • Shaft size: 8.4 x 2mm (Length x Diameter)
  • Specification
    Back Order Lead Time 120 Days
    Diameter 32mm
    Length 19.5mm
    No Load Current 0.02A
    No Load Speed 2800rpm
    Operating Voltage 1.5-9V
    Rated Load Current 0.075A
    Rated Load Speed 2300rpm
    Rated Voltage 6V
    Shaft Diameter 2.0mm
    Shaft Length 8.4mm
