LPI5112R1K21704 APEM '4' Red 12V illuminated Large Actuator Push Button Switch IP53

SKU 487848

MPN: LPI5112R1K21704

10 in stock, ready to be shipped
Original price £16.59 - Original price £16.59
Original price
£16.59 Inc VAT
£16.59 - £16.59
Current price £16.59 Inc VAT

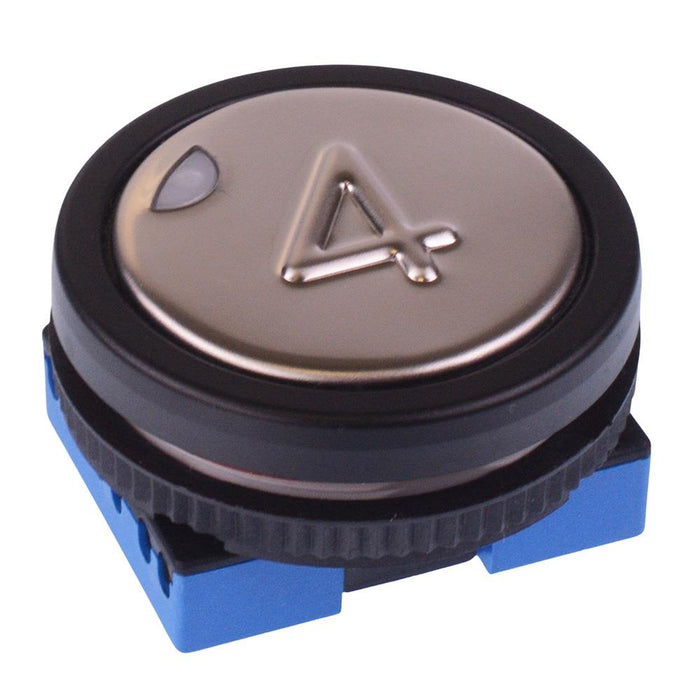

The LPI5112R1K21704 is a tactile push button switch with a large actuator manufactured by APEM, featuring LED dot illumination and low behind panel depth. The switch features the largest actuator in the whole of the APEM range and complies with the EN81-70 standard making it suitable for disabled persons to access lifts and buildings more easily.

  • Red dot LED illumination
  • 12V illumination voltage
  • 35mm diameter ergonomic actuator
  • Low behind panel depth (21mm max)
  • Tactile feedback
  • Very long life
  • Rating: 5A 12VDC
  • Momentary NO/NC contacts
  • Protection level: IP53
  • Panel thickness: 1-4mm
  • Wire size: 16-28AWG
  • Operating force: 2.5-5N
  • Dimensions: 44 x 26.3mm (diameter x depth)
  • Specification
    Actuation Momentary
    Colour Red
    Contact configuration NO/NC
    Contact material Gold Plated Silver
    Contact rating 5A 12VDC
    Current rating 5A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 12VDC
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to 65°C
    Panel cut out 38.1mm
    Panel thickness 1-4mm
    Product series LPI
    Protection level IP53
    Terminal type Screw
    Voltage rating 12VDC
