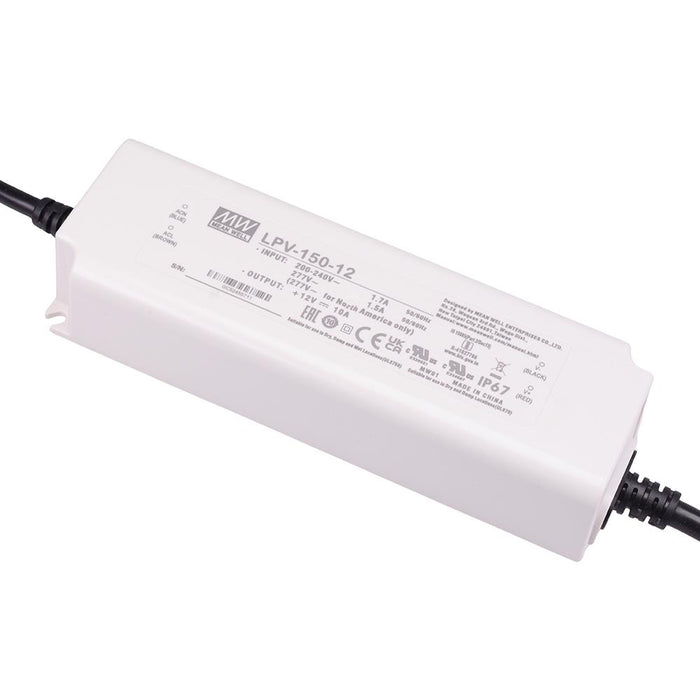

LPV-150-12 150W 12V LED Driver Power Supply IP67 Mean Well
by Mean Well
SKU 492925
MPN: LPV-150-12
Availability:
Only 5 left!
Original price
£34.59
-
Original price
£34.59
Original price
£34.59
£34.59
-
£34.59
Current price
£34.59
The LPV-150-12 is a single output switching LED power supply by Mean Well, fully encapsulated with a flame retardant plastic enclosure and rated to IP67. The power supply features universal AC input providing excellent reliability, suitable for a range of applications including industrial and LED lighting.
Output voltage: 12VDC Output current: 10A Rated power: 120W Input voltage range: 180-305VAC / 254-431VDC Constant voltage design Withstand 300VAC surge input for 5 seconds Protections: short circuit / over load / over voltage Cooling by free air convection Fully incapsulated to IP67 Fully isolated plastic case Class II power unit, no FG 100% full load burn-in test 2 year warranty Dimensions: 191 x 63 x 37.5mm (length x width x height)
Specification
| Back Order Lead Time | 14 Days |
| Input Frequency | 47-63Hz |
| Input Voltage | 180-305VAC, 254-431VDC |
| MOQ | 1 |
| Output Current | 10A |
| Output Voltage | 12VDC |
| Power Rating | 120W |
| Protection Level | IP67 |
