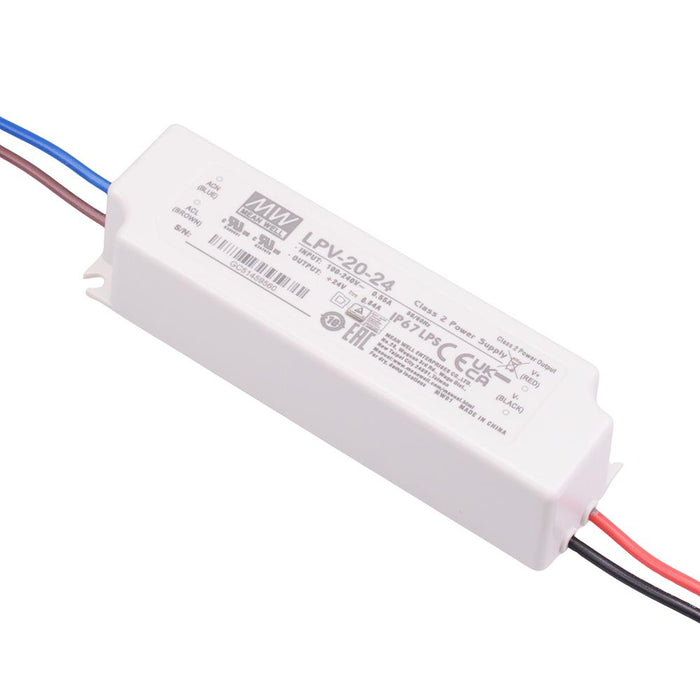

LPV-20-24 20W 24V LED Driver Power Supply IP67 Mean Well
by Mean Well
SKU 492927
MPN: LPV-20-24
Availability:
Only 5 left!
Original price
£13.61
-
Original price
£13.61
Original price
£13.61
£13.61
-
£13.61
Current price
£13.61
The LPV-20-24 is a single output switching LED power supply by Mean Well, fully encapsulated to IP67. The power supply features universal AC input providing excellent reliability, suitable for a range of applications including industrial and LED lighting.
Output voltage: 24VDC Output current: 0.84A Rated power: 20.2W Input voltage range: 90-264VAC / 127-370VDC Constant voltage design Withstand 300VAC surge input for 5 seconds Protections: short circuit / over load / over voltage Cooling by free air convection Fully incapsulated to IP67 Fully isolated plastic case Class II power unit, no FG 100% full load burn-in test 2 year warranty Dimensions: 118 x 35 x 26mm (length x width x height)
Specification
| Back Order Lead Time | 14 Days |
| Input Frequency | 47-63Hz |
| Input Voltage | 90-264VAC, 127-370VDC |
| MOQ | 1 |
| Output Current | 0.84A |
| Output Voltage | 24VDC |
| Power Rating | 20.2W |
| Protection Level | IP67 |
