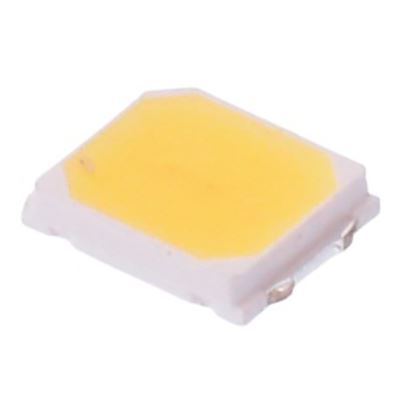

LTW-2835SZK50 Cool White 2835 SMD LED 30lm 5000K
by LiteOn
SKU 486273
MPN: LTW-2835SZK50
Availability:
3000 in stock
Original price
£0.24
-
Original price
£0.24
Original price
£0.24
Inc VAT
£0.24
-
£0.24
Current price
£0.24
Inc VAT
The LiteON 2835SZK50 is a wide beam angle standard-dimension package, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional lighting. It gives you total design freedom and unmatched brightness, creating a new opportunities for solid state lighting to displace conventional lighting technologies.
Colour temperature: 5000K Luminous flux: 40lm max Viewing angle: 120dg Forward voltage: 3.05V typical Continous forward current: 80mA Power dissipation: 256mW Compatible with automatic placement equipment Dimensions: 3.4 x 2.8 x 0.65mm (length x width x height)
Specification
| Back order lead time | 5 Days |
| Colour | Cool White |
| Colour temperature | 5000K |
| Forward current | 80mA |
| Forward voltage | 3.05V |
| Height | 0.65mm |
| Length | 3.4mm |
| Lens colour | Clear |
| Luminous intensity | 30lm |
| Moq | 5 |
| Mounting style | Surface Mount |
| Operating temperature | -40°C to +85°C |
| Package | 2835 |
| Packaging | Cut Tape |
| Power dissipation | 256mW |
| Viewing angle | 120° |
| Width | 2.8mm |
