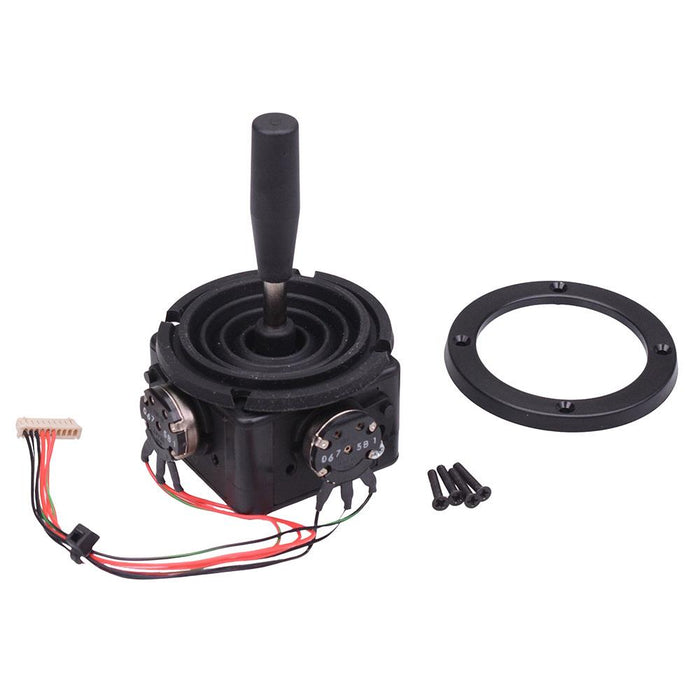

M11L0A1P-50-1155 Fingertip 2 Axis Potentiometer Joystick APEM
by APEM
SKU 492516
MPN: M11L0A1P-50-1155
Availability:
51 in stock
Original price
£103.45
-
Original price
£103.45
Original price
£103.45
£103.45
-
£103.45
Current price
£103.45
The M11L0A1P-50-1155 is a fingertip joystick featuring 2 axis and proportional resistive controls provided by the potentiometer technology. The joystick features low profile mounting and self centering spring. The joystick features a 53.1mm height straight handle, suitable for a wide range of applications requiring reliable and precise controls.
2 axis Low profile design Self centering Rubber boot mounting kit Mechanical angle of movement: 56° Panel cut-out: 39.7mm Potentiometer output: 5KΩ, 220° Handle dimensions: 53.1 x 10.4mm (height x diameter) Dimenions: 50.4 x 50.4 x 78.8mm (width x depth x height)
Specification
| Back Order Lead Time | 150 Days |
| Handle | Round |
| Joystick Travel | 56° |
| MOQ | 1 |
| Number of Axis | 2 |
| Operating Temperature | -25°C to +70°C |
| Technology | Potentiometer |
| Terminal Type | Tail Leads |
